Build
| Frame |

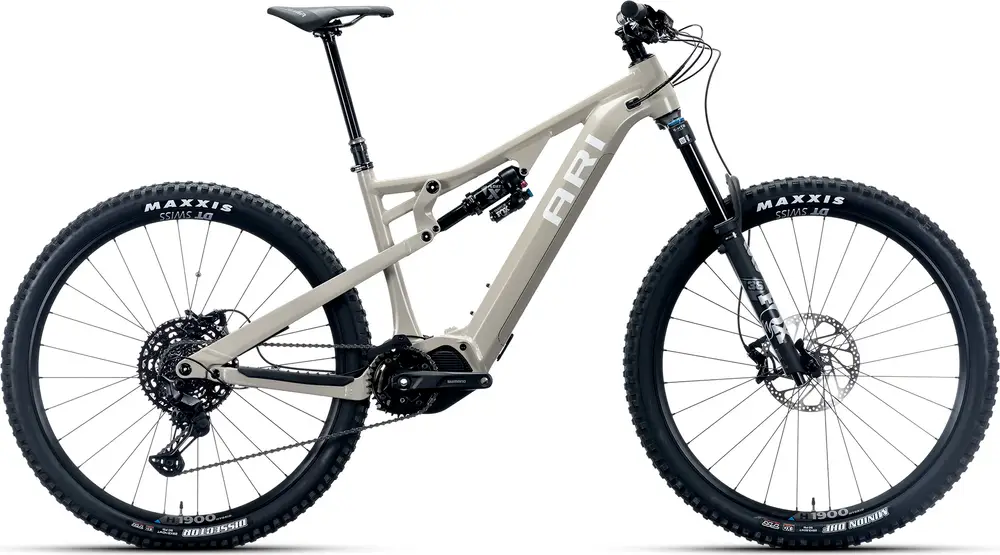

Ari Wire Peak 2.0 Full Suspension, 145mm travel. UDH derailleur hanger. Hanger Standard:Â UDH Colors:Â Maroon Flame; Desert Silk |
|---|---|
| Fork |
Fox Float 36 Grip 2 160mm, Performance Elite, External high-speed compression, low-speed compression, rebound, 160mm, 15×110,44mm offset Travel:Â 160mm Spring Type:Â Air |
| Shock |
Fox Float X Performance Elite, 210×55, Custom Tuned Travel:Â 145mm |
| Headset |
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered, with 10mm lower cup |
| Stem |
Ari Charger CNC 35 stem |
| Handlebar |
Ari Team 35, width 780/800mm, 25mm rise, 9 back sweep, 5 Up sweep, bar-customized sizing through 23-Point Custom Setup |
| Saddle |
Selle Italia X3 Boost 148 |
| Seatpost |
TranzX JD-YSI05J w/ Travel Adj. Dropper- customized sizing through 23-Point Custom Setup Type:Â Dropper |
| Pedals |
Available Separately |
Groupset
| Rear Derailleur |
Shimano XT Linkglide, 11-Speed |
|---|---|
| Front Derailleur |
N/A |
| Crank |
Shimano FC-EM600, 160mm |
| Shifters |
Shimano XT Linkglide, Trigger 11-Speed |
| Cassette |
Shimano XT Linkglide, 11-50T 11-Speed |
| Chain |
Shimano CN-LG500, 11-Speed |
| Brakes |
TRP Trail EVO, HD-M843, 2.3mm 203/203 F/R rotors Type:Â Hydraulic Disc |
Wheels
| Rims |
DT Swiss H 1900 Spline, 32 hole, Disc, Tubeless Ready |
|---|---|
| Spokes |
DT Swiss Hybrid 1 Straightpull |
| Front Hub |
F: DT Swiss 370 E-Specific, Disc, 15×110 thru axle, R: DT Swiss 370 Ratchet LN 18 E-Specific, Disc, 12×148 thru axle, HG |
| Rear Hub |
F: DT Swiss 370 E-Specific, Disc, 15×110 thru axle, R: DT Swiss 370 Ratchet LN 18 E-Specific, Disc, 12×148 thru axle, HG |
| Tires |
Front: Maxxis Minion DHF 29X2.5 WT Exo Tubeless Ready 60 TPI, Rear: Maxxis Dissector 29X2.4 Exo Tubeless Ready |
Electric Components
| Motor |
Shimano EP6 Ari custom motor tune |
|---|---|
| Battery |
Darfon 36V, 635Wh Group B EP6/EP801 |
