Build

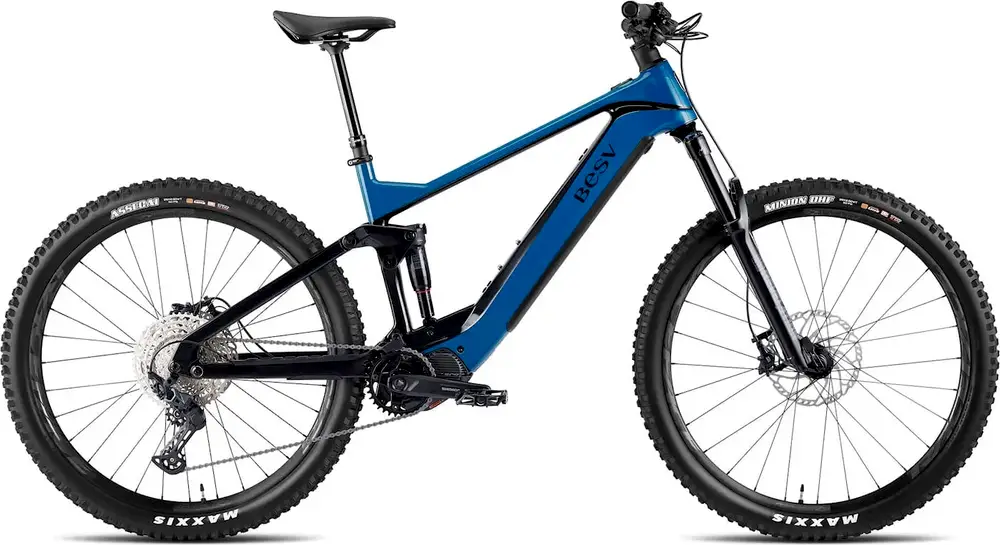

| Frame | Full-suspension BESV TCA Series frame, carbon front and rear triangle, SHIMANO E-BIKE SYSTEMS and internal battery compatible Color: River Blue with Night Black |
|---|---|
| Fork | Rock Shox Revelation, 35mm stanchions, Debon Air with Motion Control, 1.1/8″-1.8″ tapered alloy steerer, travel 140mm, Maxle Lite Travel: 140mm Spring Type: Air |
| Shock | Rock Shox Delux Select, DebonAir, 185×50 |
| Bottom Bracket | Shimano, integrated in motor |
| Headset | Acros, AZX-581, 1.5″ headset, angular contact bearings, integrated cable routing |
| Stem | E-MTB 3D Forged alloy stem, 35mm clamp, for internal cable routing |
| Handlebar | E-MTB reis bar, 6066 alloy, 15mm rise, sweep: 7 degree back, 35mm clamp |
| Saddle | Selle Italia Model-X Superflow eBike |
| Seatpost | Kind Shock e20i dropper post with remote lever, travel: 170mm, 30.9mm diameter, 0mm offset Type: Dropper |
| Pedals | Wellgo, alloy body, ball bearings, with pins |
| Grips | Race Face Half-Nelson |
Groupset
| Rear Derailleur | Shimano SLX RD-M7100, 12 speed |
|---|---|
| Crank | Shimano FC-EM600 for Shimano EP801, Shimano CRE80 34T chainring |
| Shifters | Shimano SLX SL-M7100, 12 speed |
| Cassette | Shimano Deore CS-M6100, 12 speed, 10-51T |
| Chain | KMC e12Turbo, with Quick-Link |
| Brakes | Shimano SLX M7120, 4-piston hydraulic disc, with 203mm front and rear rotors Type: Hydraulic Disc |
| Brake Levers | Shimano SLX M7100, 2 finger lever |
Wheels
| Rims | Race Face Aeffect-R, eMTB wheelset 29″, Boost hubs spacing, Race Face multichamber alloy rims 32H |
|---|---|
| Tires | 9″x2.5″ |
Electric Components
| Motor | Shimano EP801 center-motor, 250W rated power, 85Nm of torque, 25km/h maximum assist |
|---|---|
| Battery | 720WH |
| Display | Shimano SC-EM800, center mounted, with LCD display, Bluetooth and ANT private connectivity, left hand switch |
