Build

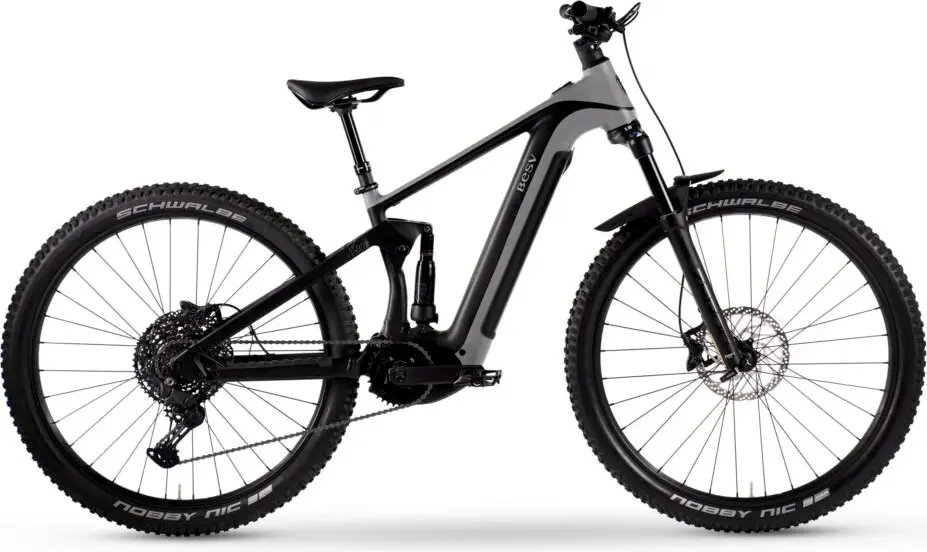

| Frame | Full-suspension BESV TRS Series smooth welded alloy frame, SHIMANO E-BIKE SYSTEMS and internal battery compatible Color: Slate Gray with Black Satin |
|---|---|
| Fork | SR Suntour Zeron35, 35mm stanchions, Lockout, Air damping, 1 1/8″-1.8″ tapered alloy steerer, travel 130mm Travel: 130mm Spring Type: Air |
| Shock | Rock Shox Deluxe Select R, 210×55, Debon Air, 130mm rear wheel travel |
| Bottom Bracket | Shimano, integrated in motor |
| Headset | Acros, AZX-581, 1.8″ headset, angular contact bearings, integrated cable routing |
| Stem | E-MTB 3D Forged alloy stem, 35mm clamp, for internal cable routing |
| Handlebar | E-MTB rizer bar, 6066 alloy, 15mm rise, sweep: 7 back, 35mm clamp |
| Saddle | Selle Italia Model-X Superflow Comfort+ |
| Seatpost | Kind Shock e20i dropper post with remote lever, 30.9mm diameter, 0mm offset Type: Dropper |
| Pedals | Wellgo, alloy body, ball bearings |
| Grips | E-MTB gel grips with padding and BESV clamp |
Groupset
| Rear Derailleur | Shimano CUES RD-U6000, 11 speed |
|---|---|
| Crank | Samox for SHIMANO E-BIKE SYSTEMS crank arms, KMC 34T chainring |
| Shifters | Shimano CUES SL-U6000, 11 speed |
| Cassette | Shimano CUES CS-LG400, 11 speed, 11-50T |
| Chain | Shimano CN-LG500, with Quick-Link |
| Brakes | Hydraulic Disc Type: Hydraulic Disc |
Wheels
| Rims | Shimano HB-TC500-15-B front hub and Shimano FH-TC500-HM-B rear hub, Boost hubs spacing, WTB STi30 29″ multichamber alloy rims 32H |
|---|---|
| Tires | 29 x 2.6 |
Electric Components
| Motor | Shimano EP801 (85Nm) |
|---|---|
| Battery | 708WH |
| Display | Shimano SC-EN500, left hand mounted, with LCD display |
