Build

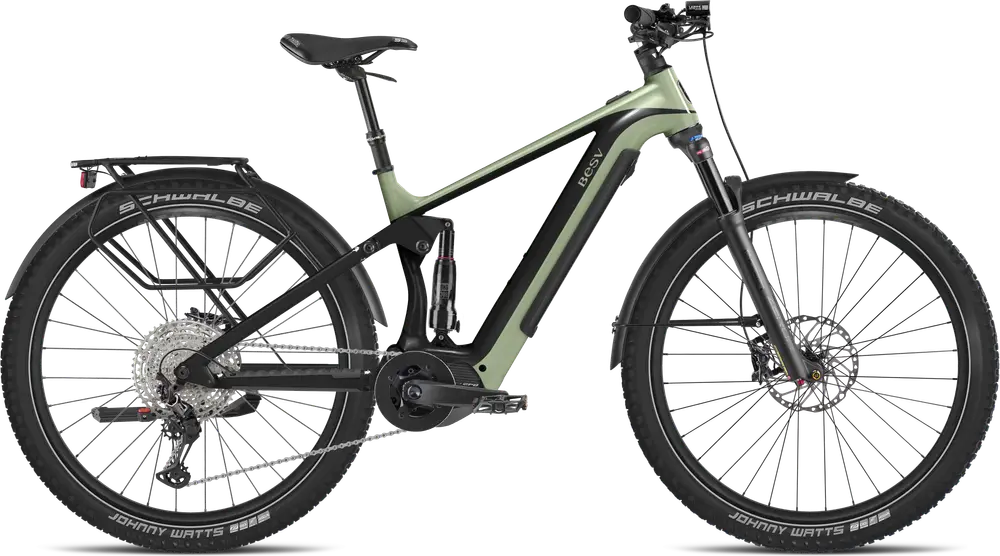

| Frame | Full-suspension BESV TRS Series smooth welded alloy frame, SHIMANO E-BIKE SYSTEMS and internal battery compatible Color: Jade Green with Black Satin |
|---|---|
| Fork | SR Suntour Zeron35, 35mm stanchions, Lockout, Air damping, 1 1/8″-1.8″ tapered alloy steerer, travel 130mm Travel: 130mm Spring Type: Air |
| Shock | Rock Shox Deluxe Select R, 210×55, Debon Air, 130mm rear wheel travel |
| Bottom Bracket | Shimano, integrated in motor |
| Headset | Acros, AZX-581, 1.8″ headset, angular contact bearings, integrated cable routing |
| Stem | E-MTB 3D Forged alloy stem, 35mm clamp, for internal cable routing |
| Handlebar | E-MTB rizer bar, 6066 alloy, 15mm rise, sweep: 7 back, 35mm clamp |
| Saddle | Selle Italia S5 Superflow |
| Seatpost | Kind Shock e10, 30.9mm diameter Type: Dropper |
| Pedals | Wellgo, alloy body, ball bearings |
| Grips | E-MTB gel grips with padding and BESV clamp |
Groupset
| Rear Derailleur | Shimano Deore XT RD-M8100, 12 speed |
|---|---|
| Crank | Samox for SHIMANO E-BIKE SYSTEMS, 34T chainring |
| Shifters | Shimano Deore SL-M6100, 12 speed |
| Cassette | Shimano Deore CS-M6100, 12 speed, 10-51T |
| Chain | KMC e12Turbo, with Quick-Link |
| Brakes | Rim Type: Rim |
Wheels
| Rims | Shimano HB-MT400 front hub and FH-TC500-MS-B rear hub, Boost hubs spacing, WTB STi27 29″ multichamber alloy rims 32H |
|---|---|
| Tires | 29 x 2.35 |
Electric Components
| Motor | Shimano EP600 (85Nm) |
|---|---|
| Battery | 708WH |
| Display | Shimano SC-EN500, left hand mounted, with LCD display |
Accessories
| Fenders | Alloy extruded fenders, front & rear 3/4 length, stainless steel hardware |
|---|---|
| Racks | Rear: Tubular aluminium carrier, with MIK platform and spring clamp, H-Cargo rear light mount |
