Build
| Frame |

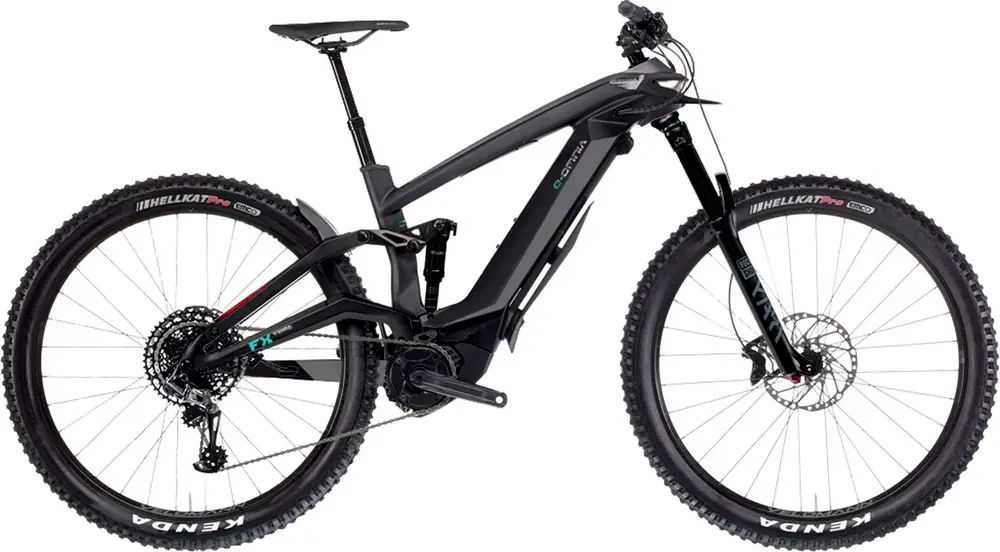

e-OMNIA FX-Type ALU sizes: 43, 48, 53 – 12×148 mm thru axle dropouts (special dropout for external derailleur) – Post mount 180 disc brake type – 160/150mm travel front – 150mm travel rear Colors:Â Bc – Blu Notte / Celeste Ck16 Full Glossy; Or – Black / Gray matt:Glossy |
|---|---|
| Fork |
Fox 36 Float eBike optimized 29″, Rhythm, 160mm travel, 1.5″ tapered HT, QR 15x110mm BOOST axle, minimum 180mm rotor, maximum 230mm rotor, 44mm rake, 58mm crown Travel:Â 160mm Spring Type:Â Air |
| Shock |
FOX Float, Performance, 185/55, EVOL, 3 position lever, 0.3 Spacer, Neutral Decal Travel:Â 150mm |
| Bottom Bracket |
included in the motor |
| Headset |
FSA NO.55R/558 1.5″ |
| Stem |
Velomann +/-0, 1,1/8 x diam.35mm, 50mm |
| Handlebar |
Velomann, width 780mm, diam.35mm, rise 18mm, backsweep 8 |
| Saddle |
Velomann Gnd Full-fit Start Up, carbon steel rail, 262×145 |
| Seatpost |
Velomann, diam.31,6mm, internal remote cable routing, 120mm/150mm travel Type:Â Dropper |
| Grips |
T-One Rock T-GP34 single lock grip, TPR, 130mm, plastic inner body, aluminium clamp |
Groupset
| Rear Derailleur |
Shimano, RD-M8100, XT, SGS 12-SPEED |
|---|---|
| Crank |
FSA CK-762/IS Forged Alu crank 165 mm ISIS Shimano CHAINRING, SM-CRE80-12, 34T |
| Shifters |
Shimano, SL-M6100-IR, DEORE,12-SPEED |
| Chain |
Shimano, CN-M7100, 12sp |
| Brakes |
Shimano, BL-MT501, BR-MT520, 4 pistons Type:Â Hydraulic Disc |
Wheels
| Rims |
Velomann E30 Tubeless Ready 29″, 622×30, 32 hole |
|---|---|
| Front Hub |
Formula CL-811 for Center Lock, 32h, 15x110mm TA |
| Rear Hub |
Formula CL-3248 for Center Lock, 32h, 12x148mm TA |
| Tires |
Front: Pirelli Scorpion E-MTB M 29×2.6 TLR, 60tpi Rear: Pirelli Scorpion E-MTB R 27.5×2.6 TLR, 60tpi |
| Disc Rotors |
Shimano, SM-RT64, RT-EM600, DEORE, L 203MM |
Electric Components
| Motor |
Bosch Performance Line CX, 250W, 85Nm, Purion display |
|---|---|
| Battery |
Bosch PowerTube 625Wh integrated battery |
Accessories
| Lights |
Front: Spanninga custom integrated light, 40 lux, Rear: Spanninga custom integrated light |
|---|
