Build
Frame |

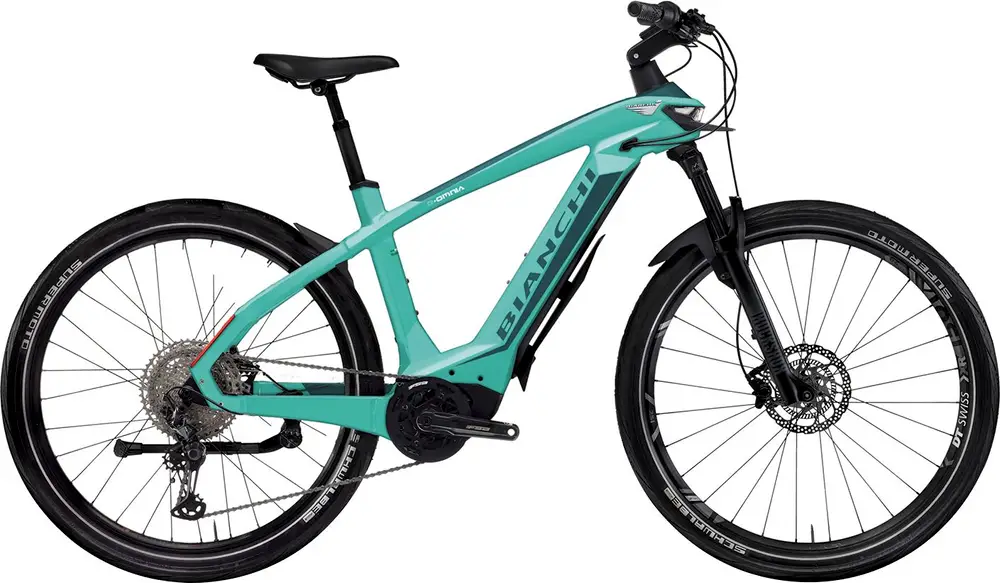

E-MTB OMNIA X Type HT Alu 29″ BIANCHI 120mm front suspended, 1.5″ tapered HT, seatpost diam.31,6mm, integrated seat clamp, PM 180mm dropout thru axle 12x148mm, internal cable routing inside DT, sizes 43,48,53 (MD; LG; XL) Colors:Â 4a – Ck16 / Dark Celeste Full Matt; 4b – Metal Orange / Graphite Full Matt; Or – Black / Gray matt:Glossy; Bc – Blu Notte / Celeste Ck16 Full Glossy |
---|---|
Fork |
SRAM XCR34 AIR Boost LOR DS 29″ 120mm, 1.5″ tapered HT, 34mm black stanchions, PM 180mm disc mount, 15X110 TA 15AH2-110 Travel:Â 120mm Spring Type:Â Air |
Bottom Bracket |
included in the motor |
Headset |
FSA NO.55R/558 1.5″ |
Stem |
Velomann, 1,1/8 x diam.31,8mm, 55mm for 15,17,19,21″ |
Handlebar |
Velomann, width 740mm, diam.31.8mm, rise 15mm, backsweep 9 |
Saddle |
Velomann, carbon steel rail, 262×145 |
Seatpost |
Velomann, lenght 350mm for SM size and 400mm for MD, LG, diam.31,6mm, 0mm seatback Type:Â Rigid |
Grips |
T-One Rock T-GP34 |
Groupset
Rear Derailleur |
Shimano, RD-M5100, DEORE,SGS 11-SPEED |
---|---|
Crank |
FSA CK-320/IS Die cast AL crank 165 mm ISIS |
Shifters |
Shimano, SL-M5100-R, DEORE, 11-SPEED |
Chain |
KMC e11T EPT, 11sp |
Brakes |
Shimano, BL-M4100, BR-MT410, RESIN PAD Type:Â Hydraulic Disc |
Wheels
Rims |
Velomann 29, 30mm 29, 489g, 32 hole drilling, Disc Only |
---|---|
Front Hub |
Formula CL-811 for Center Lock, 32h, 15x110mm TA, 2SB |
Rear Hub |
Formula CL-3248 for Center Lock, 32h, 12x148mm TA, HG, 2SB |
Tires |
Kenda Booster 29×2.6, 30tpi |
Disc Rotors |
Shimano, SM-RT10, M 180MM, W/LOCK RING |
Electric Components
Motor |
OLI Edge, 90Nm, 250W Display High Vision |
---|---|
Battery |
Internal battery 630Wh |
Accessories
Lights |
Front: Spanninga custom integrated light, 40 lux, Rear: Spanninga custom integrated light |
---|
