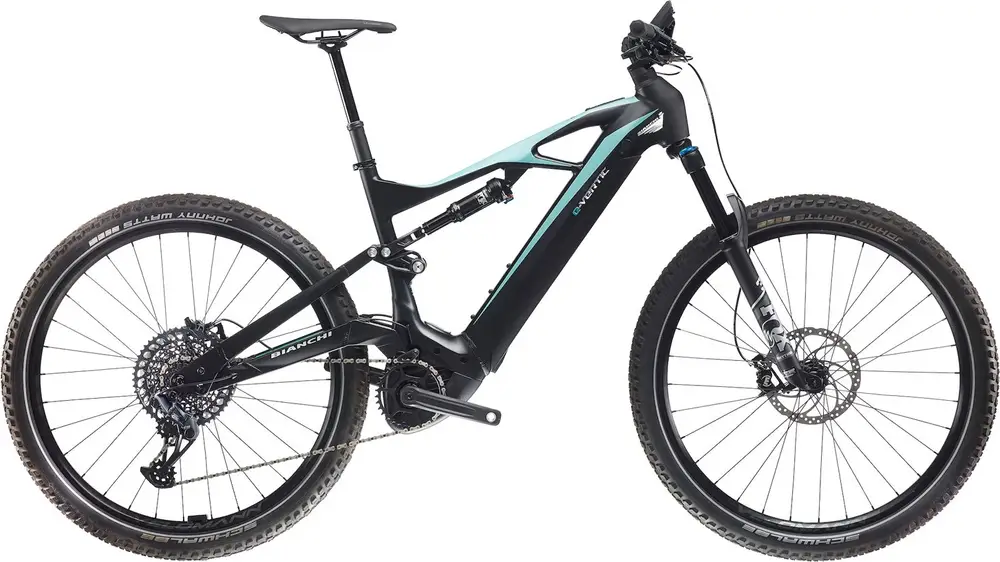

2023 Bianchi e-Vertic FX-Type – SX A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Build
| Frame | e-VERTIC FX-Type FULL SUSPENDED ALU. Sizes: 43-48-53 – 140 mm front travel – 140mm rear travel – Fender + Rack mounting points – HT 1,5” straight – for integrated cable routing – Seatpost 31,6 mm – 12×148 mm dropouts – Colors: E4 – Graphite Race Matt / Ck16 Matt; E6 – Red; V6 – Graphitematt / Sagematt |
|---|---|
| Fork | Rock Shox 35 SILVER TK CROWN ADJUST 29″ FENDER COMPATIBLE MXL STEALTH BOOST 15X110MM AXLE SOLO AIR 140MM, UPPERS 44 OFFSET TAPERED STEERER A1 |
| Rear Shock | Rock Shox Deluxe Select, 210/55, DebonAir Linear, Shaft 25×8 |
| Bottom Bracket | included in the motor |
| Headset | Acros 1.8″ top / 1.5″ bottom – bearings – internal cable routing – w/ blocklock |
| Stem | Velomann Ursa, 50 mm, 35 mm, 1″1/8 |
| Handlebar | Velomann, width 780mm diam.35mm, rise 20mm, backsweep 9°, double butted AL7050 |
| Saddle | Fi’zi:k Terra Aidon X5 – 160mm – fiber reinforced nylon with Wingflex – S-Alloy Mobius 7x7mm |
| Seatpost | Alpha1 Series – 31.6 mm – Remote RM07 I-Spec EV – 1800 mm cable length – Velomann logo 125 mm – for size M 150 mm – for size L/XL |
| Grips | T-One Rock T-GP34 single lock grip, TPR, plastic inner body, aluminium clamp |
Groupset
| Rear Derailleur | SRAM SX EAGLE 12sp |
|---|---|
| Crank | FSA Direct Mount Steel Chainring – 34T / w/HT Steel CK-320 FSA E-Bike Diecast Crankset – ISIS / 170mm / Die cast aluminum |
| Shifters | SRAM SX EAGLE 1×12 trigger single click for e-bike |
| Chain | SRAM SX EAGLE, 12sp |
| Brakes | Shimano DISC BRAKE ASSEMBLED SET, BL-M4100, BR-MT420, RESIN PAD, 800MM HOSE/1700 HOSE |
Wheels
| Rims | Velomann X30 Tubeless Ready 29″, 30-622, 32 hole black |
|---|---|
| Rear Hub | Shimano, CENTER LOCK DISC(W/O LOCK RING) 8-11-SPEED FOR 12MM THRU TYPE AXLE, 32H OLD:148MM |
| Tires | Continental Ruban black/black foldable skin SL |
| Disk Rotors | Shimano, L 203MM / M 180MM, W/LOCK RING, FOR RESIN PAD ONLY |
Electric Components
| Motor | Bosch Performance Line CX Smart System |
|---|---|
| Battery | Bosch Powertube 750wh integrated battery |
