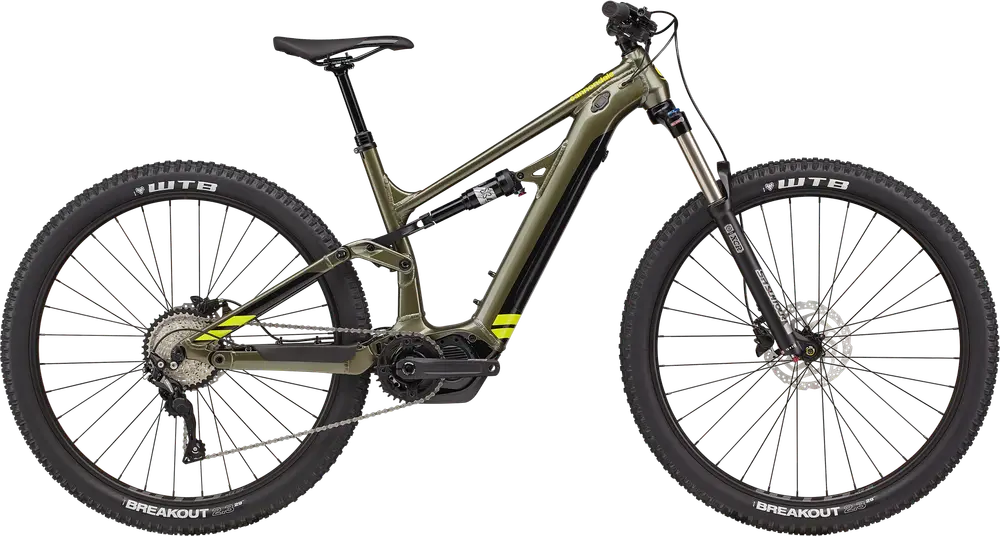

Cannondale Moterra Neo 5 2024 Overview
Build
Frame |
150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube Color:Â Mantis |
---|---|
Fork |
SR Suntour XCR LO Boost 29, 140mm travel, 15mm thru axle, tapered alloy steerer Travel:Â 140mm |
Shock |
X-Fusion 02 Pro RL, Rebound and Lockout Travel:Â 150mm |
Headset |
Integrated Sealed Bearing, Tapered |
Stem |
3D Forged 6061 Alloy, 1-1/8″, 31.8, 7 |
Handlebar |
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8 sweep, 4 rise, 780mm |
Saddle |
Cannondale Ergo XC |
Seatpost |
TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL) Type:Â Dropper |
Pedals |
Not included |
Grips |
Cannondale Locking Grips |
Groupset
Rear Derailleur |
Shimano Deore M6000 |
---|---|
Crank |
FSA Shimano E-Bike, 165mm, FSA Megatooth, 34T |
Shifters |
Shimano Deore M4100, 10-speed |
Cassette |
Shimano HG500, 11-42, 10-speed |
Chain |
Shimano Deore, 10-speed |
Brakes |
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors Type:Â Hydraulic Disc |
Brake Levers |
Shimano MT200 hydraulic disc |
Wheels
Rims |
WTB STX i25 TCS, 32h, tubeless ready |
---|---|
Spokes |
Stainless Steel, 14g |
Front Hub |
Shimano MT400, 15x110mm thru-axle |
Rear Hub |
Shimano MT400, 12x148mm thru-axle |
Tires |
WTB Breakout, 29×2.3″, DNA Compound, Comp Level, 30TPI |
Electric Components
Motor |
Shimano STEPS DU-E7000 250W |
---|---|
Battery |
Shimano STEPS BT-E8035, 504Wh Recycling Program:Â Â Call2Recycle |
Display |
Shimano SC-E7000, Bluetooth enabled |
Charger |
Shimano Battery Charger 2A |
