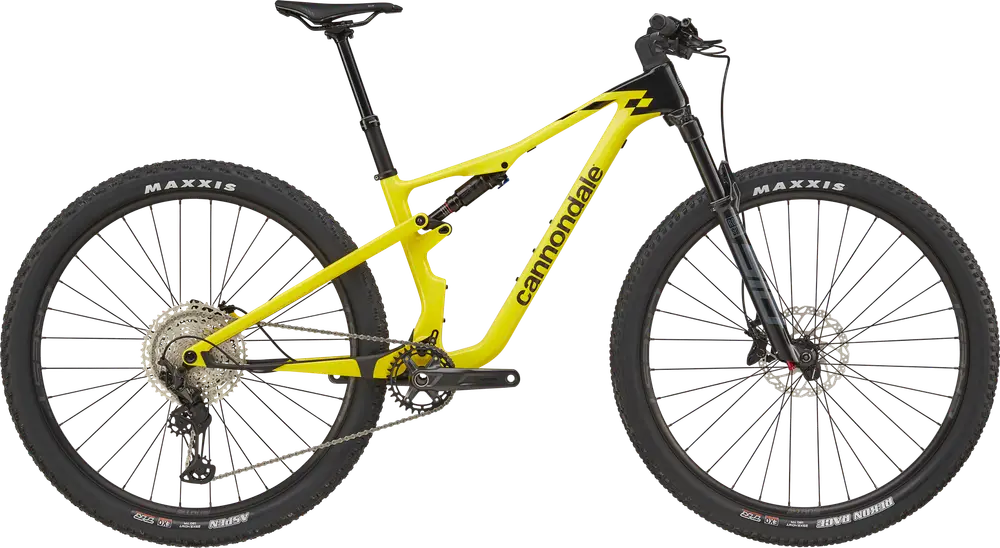

Cannondale Scalpel 4 2024 Overview
Build
Frame |
Scalpel, lightweight carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5″ headtube with 1-1/8″ upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc 160mm native BB Standard:Â BSA, 73mm, Threaded Hanger Standard:Â UDH Colors:Â Smoke Black; Race Yellow |
---|---|
Fork |
RockShox SID, 120mm, Debonair, 15x110mm thru-axle, tapered steerer, 44mm offset Travel:Â 120mm Spring Type:Â Air |
Shock |
RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190×45 Travel:Â 120mm |
Bottom Bracket |
Shimano BSA 73mm |
Headset |
Acros ICR |
Stem |
Cannondale C1 Conceal, Alloy, 31.8, -6 |
Handlebar |
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3 rise, 8 sweep, 760mm |
Saddle |
Prologo Dimension NDR, STN rails |
Seatpost |
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL) Type:Â Dropper |
Pedals |
Not Included |
Grips |
Cannondale XC Silicone |
Groupset
Rear Derailleur |
Shimano XT |
---|---|
Crank |
Shimano M5121, 32T |
Shifters |
Shimano Deore 6100, 12-speed |
Cassette |
Shimano Deore, 10-51, 12-speed |
Chain |
Shimano Deore, 12-speed |
Brakes |
Shimano MT501 hydraulic disc, 180/160mm RT54 rotors Type:Â Hydraulic Disc |
Brake Levers |
Shimano MT501 hydraulic disc |
Wheels
Rims |
Stan’s NoTubes Crest S2, 32h, tubeless ready |
---|---|
Spokes |
Stainless Steel, 14g |
Front Hub |
(F) Shimano TC-500, 15x110mm thru-axle / (R) Shimano MT410B, 12x148mm thru-axle |
Rear Hub |
(F) Shimano TC-500, 15x110mm thru-axle / (R) Shimano MT410B, 12x148mm thru-axle |
Tires |
(F) Maxxis Rekon Race WT, 29×2.4″, EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29×2.4″, EXO Protection, tubeless ready |
