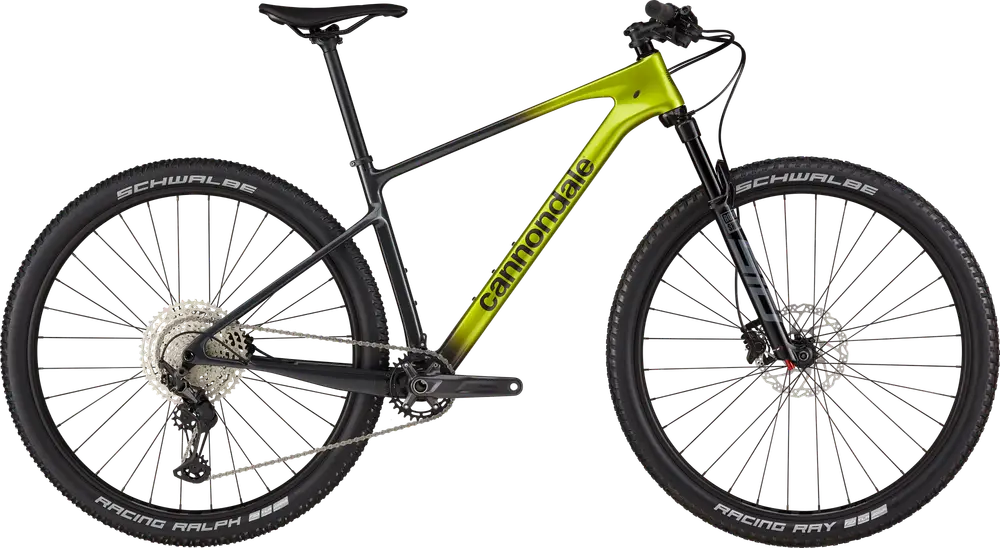

Cannondale Scalpel HT Carbon 4 2024 Overview
Build
Frame |
Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger BB Standard:Â PF30, Press Fit Hanger Standard:Â UDH Colors:Â Acid Red; Viper Green; Black Pearl |
---|---|
Fork |
RockShox SID SL , 100mm, Debonair, remote lockout, 15x110mm thru-axle, tapered steerer, 44mm offset Travel:Â 100mm Spring Type:Â Air |
Bottom Bracket |
Cannondale Alloy PressFit 30 – 24mm |
Headset |
Integrated, 1-1/8 to 1.5″, sealed angular contact bearings |
Stem |
Cannondale 2, 6061 Alloy, 31.8, 7 |
Handlebar |
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3 rise, 8 sweep, 760mm |
Saddle |
Cannondale Scoop Shallow Sport, steel rails |
Seatpost |
C3 Alloy, 27.2x400mm Type:Â Rigid |
Pedals |
Not Included |
Grips |
Cannondale TrailShroom |
Groupset
Rear Derailleur |
Shimano XT |
---|---|
Crank |
Shimano M5121, 30T, 55mm chainline |
Shifters |
Shimano Deore M6100, 12-speed |
Cassette |
Shimano Deore M6100, 10-51, 12-speed |
Chain |
Shimano Deore, 12-speed |
Brakes |
Shimano MT501 hydraulic disc, 160/160mm RT54 rotors Type:Â Hydraulic Disc |
Brake Levers |
Shimano MT500 hydraulic disc |
Wheels
Rims |
WTB STX i23, 32h, tubeless ready |
---|---|
Spokes |
DT Swiss Champion 2.0 |
Front Hub |
(F) Shimano MT410, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle |
Rear Hub |
(F) Shimano MT410, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle |
Tires |
(F) Schwalbe Racing Ray EVO, 29×2.25″, Twinskin, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29×2.25″, SnakeSkin, Addix compound, tubeless ready |
Reviews
There are no reviews yet.
