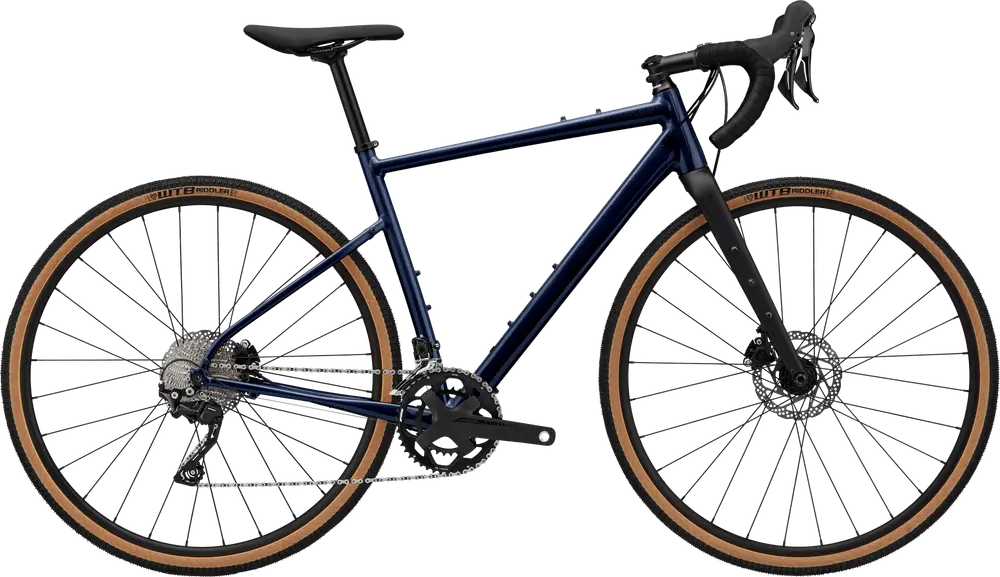

An aluminum frame gravel bike with mid-range components and shimano grx 400 hydraulic disc brakes.
Build
Frame |
Topstone, lightweight SmartForm C2 Alloy, 12×142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts BB Standard:Â BSA, 68mm, Threaded Tire Clearance:Â 45c Colors:Â Midnight Blue; Olive Green |
---|---|
Fork |
Topstone Carbon, 1-1/8″ to 1.5″ steerer, 55mm OutFront offset, flat mount disc, internal routing, 12×100 thru-axle, fender/gear mounts |
Bottom Bracket |
FSA Cartridge |
Headset |
Integrated, 1-1/8″ – 1.5″ |
Stem |
Cannondale 3, 6061 Alloy, 31.8, 7° |
Handlebar |
Cannondale 3, butted 6061 Alloy, 16 deg flare drop |
Saddle |
Fizik Aliante Delta, S-alloy rails |
Seatpost |
Cannondale 3, 6061 Alloy, 27.2x350mm Type:Â Rigid |
Pedals |
Not included |
Grips |
Cannondale Bar Tape, 3.5mm |
Groupset
Rear Derailleur |
Shimano GRX 400, Shadow RD+ |
---|---|
Front Derailleur |
Shimano GRX 400 |
Crank |
FSA Omega AGX+ Alloy, 46/30 |
Shifters |
Shimano GRX 400, 10-speed |
Cassette |
Shimano HG500, 11-34, 10-speed |
Chain |
KMC X10, 10-speed |
Brakes |
Shimano GRX 400 hydraulic disc, 160/160mm RT54 rotors Type:Â Shimano GRX 400 Hydraulic Disc |
Brake Levers |
Shimano GRX 400 hydraulic disc |
Wheels
Rims |
WTB ST i23 TCS, 28h, tubeless ready |
---|---|
Spokes |
Stainless Steel, 14g |
Front Hub |
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock |
Rear Hub |
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock |
Tires |
WTB Riddler, 700x37c (Europe/UK – Vittoria Terreno Dry, 700x37c) |
