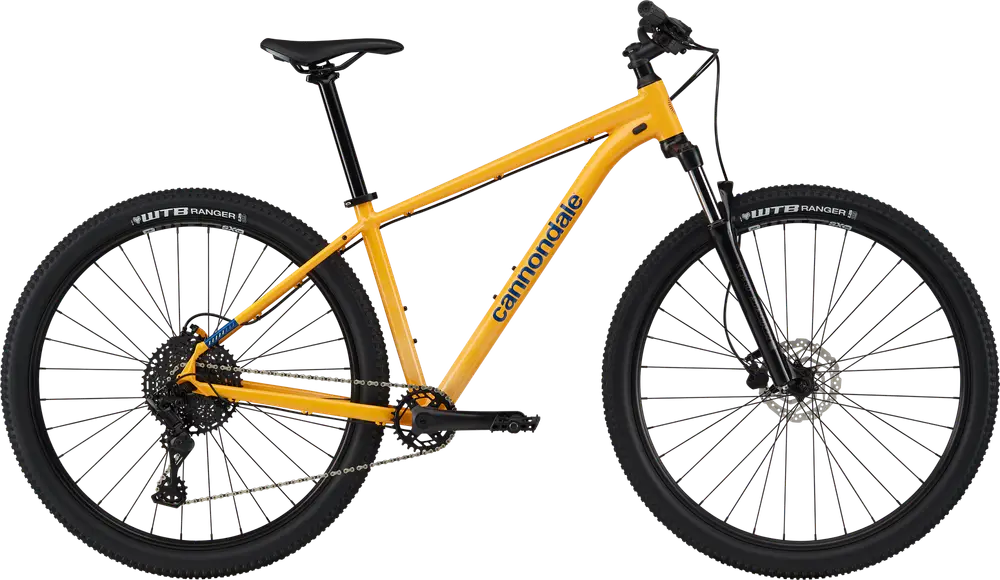

Cannondale Trail 5 2024 Overview
Build
| Frame | SmartForm C3 Alloy, SAVE, 1-1/8″ headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73, rear rack mounts, KickFlip hidden 18mm 2-bolt kickstand mount BB Standard: BSA, 73mm, Threaded Colors: Graphite; Mango; Rally Red |
|---|---|
| Fork | SR Suntour XCM, 100mm, coil, 42mm offset (27.5″) 46mm offset (29″) Travel: 100mm Spring Type: Coil |
| Bottom Bracket | Sealed cartridge bearing, square taper |
| Headset | Semi-Integrated, 1-1/8″ |
| Stem | 6061 Alloy, 31.8, 7 |
| Handlebar | Cannondale Riser, 6061 Alloy, 25mm rise, 8 sweep, 6 rise, 720mm |
| Saddle | Cannondale Stage 3 |
| Seatpost | Cannondale 3, 6061 Alloy, 31.6x350mm (XS – SM), 400mm (MD-XL) Type: Rigid |
| Pedals | Cannondale Platform |
| Grips | Cannondale Dual-Density |
Groupset
| Rear Derailleur | microSHIFT Advent X |
|---|---|
| Crank | Prowheel, Charm 30T |
| Shifters | microSHIFT Advent X, 10-Speed |
| Cassette | microSHIFT, 11-48, 10-speed |
| Chain | KMC X10, 10-speed |
| Brakes | Tektro M275 hydraulic disc, 160/160mm rotors Type: Hydraulic Disc |
| Brake Levers | Tektro hydraulic disc |
Wheels
| Rims | WTB SX19, 32h |
|---|---|
| Spokes | Stainless Steel, 14g |
| Front Hub | Shimano HBTX 505 |
| Rear Hub | Shimano FH-TX505 |
| Tires | WTB Ranger Comp, 29×2.25″ (27.5×2.25″ – XS, SM), DNA Compound |
