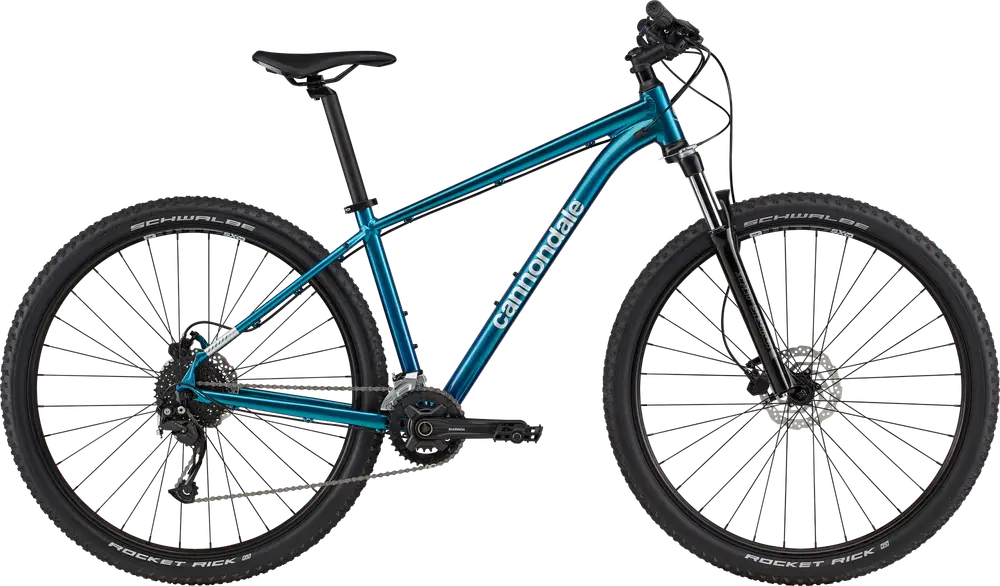

Cannondale Trail 6 2024 Overview
Build
| Frame |
SmartForm C3 Alloy, SAVE, 1-1/8″ headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73 BB Standard:Â BSA, 73mm, Threaded Colors:Â Slate Gray; Abyss Blue; Impact Orange; Deep Teal |
|---|---|
| Fork |
SR Suntour XCT, 100mm, coil, 42mm offset (27.5″) 46mm offset (29″) Travel:Â 100mm Spring Type:Â Coil |
| Bottom Bracket |
Sealed cartridge bearing, square taper |
| Headset |
Semi-Integrated, 1-1/8″ |
| Stem |
6061 Alloy, 31.8, 7 |
| Handlebar |
Cannondale Riser, 6061 Alloy, 25mm rise, 8 sweep, 6 rise, 720mm |
| Saddle |
Cannondale Stage 3 |
| Seatpost |
Cannondale 3, 6061 Alloy, 31.6x350mm (XS – SM), 400mm (MD-XL) Type:Â Rigid |
| Pedals |
Cannondale Platform |
| Grips |
Cannondale Dual-Density |
Groupset
| Rear Derailleur |
Shimano Acera |
|---|---|
| Front Derailleur |
Shimano Altus, 34.9mm clamp |
| Crank |
Prowheel, 36/22 |
| Shifters |
Shimano M315 Rapidfire Plus, 8-speed |
| Cassette |
Sunrace, 11-34, 8-speed |
| Chain |
KMC X8, 8-speed |
| Brakes |
Tektro M275 hydraulic disc, 160/160mm rotors Type:Â Hydraulic Disc |
| Brake Levers |
Tektro hydraulic disc |
Wheels
| Rims |
WTB SX19, 32h |
|---|---|
| Spokes |
Stainless Steel, 14g |
| Front Hub |
Shimano QC300, QR |
| Rear Hub |
Shimano QC300, QR |
| Tires |
WTB Ranger Comp, 29×2.25″ (27.5×2.25″ – XS, SM), DNA Compound |
