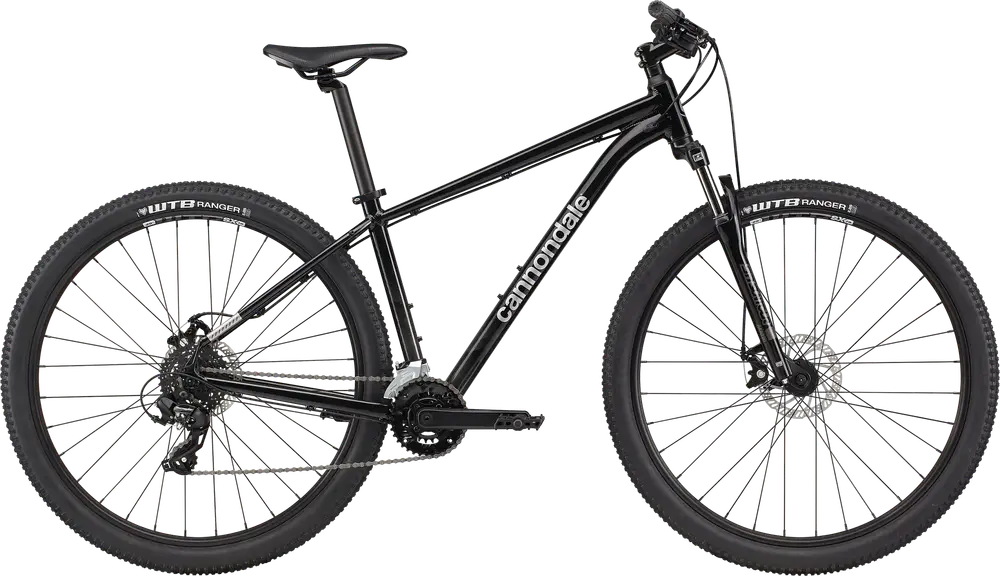

Cannondale Trail 8 2024 Overview
Build
Frame |
SmartForm C3 Alloy, SAVE, 1-1/8″ headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73 BB Standard:Â BSA, 73mm, Threaded Colors:Â Quicksand; Grey |
---|---|
Fork |
SR Suntour M3030, 75mm, coil, 42mm offset (27.5″) 46mm offset (29″) Travel:Â 75mm Spring Type:Â Coil |
Bottom Bracket |
Sealed cartridge bearing, square taper |
Headset |
Semi-Integrated, 1-1/8″ |
Stem |
6061 Alloy, 31.8, 8 |
Handlebar |
6061 Alloy Riser, 31.8mm, 25mm rise, 700mm |
Saddle |
Cannondale Stage 3 |
Seatpost |
Cannondale 3, 6061 Alloy, 31.6x350mm (XS – SM), 400mm (MD-XL) Type:Â Rigid |
Pedals |
Cannondale Platform |
Grips |
Cannondale Dual-Density |
Groupset
Rear Derailleur |
microSHIFT M26L |
---|---|
Front Derailleur |
microSHIFT Dual Pull Compact, Band Clamp |
Crank |
Prowheel, 36/22 |
Shifters |
microSHIFT, 7-speed |
Cassette |
Sunrace, 11-34, 7-speed |
Chain |
KMC Z7, 7-speed |
Brakes |
Tektro mechanical disc, 160/160mm rotors Type:Â Mechanical Disc |
Brake Levers |
Tektro |
Wheels
Rims |
WTB SX19, 32h |
---|---|
Spokes |
Stainless Steel, 14g |
Front Hub |
Formula, QR |
Rear Hub |
Formula QR |
Tires |
WTB Ranger Comp, 29×2.25″ (27.5×2.25″ – XS, SM), DNA Compound |
