Build

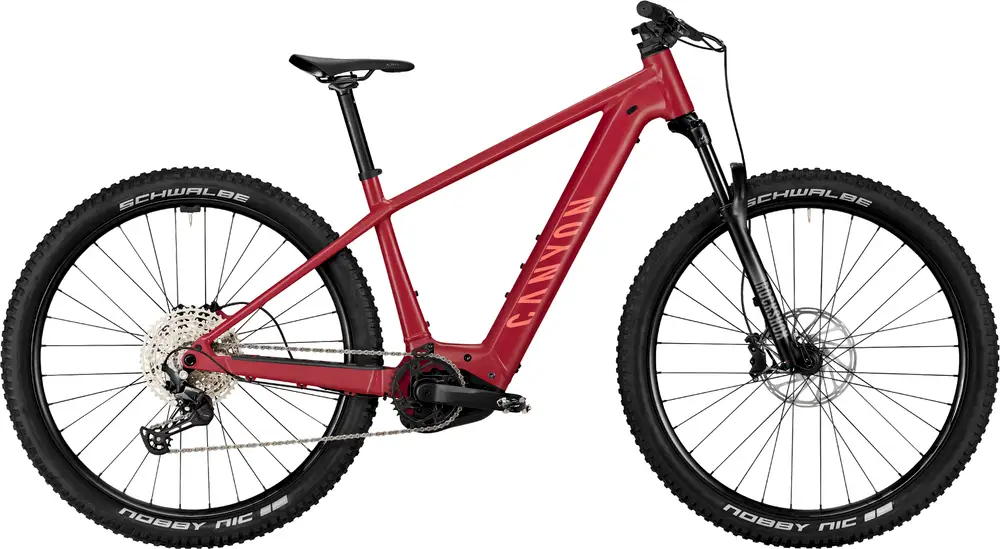

| Frame | Canyon Grand Canyon:ON AL, Category: 3e, Axle dimension: 12×148 mm, Material: Aluminium (AL) BB Standard: Bosch, Press Fit Color: Frutti Di Bosco |
|---|---|
| Fork | Rockshox Judy Silver 29 120mm Boost, Axle dimension: 15×110 mm, Stanchion Diameter: 30 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 51 mm, Weight: 5.07 lbs Travel: 120mm |
| Bottom Bracket | Bosch, press-fit |
| Stem | Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8″, Clamping diameter: 35,0 mm |
| Handlebar | Canyon:ON HB0056 Riser bar, Aluminum., Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 20 mm |
| Saddle | Fizik Terra Alpaca X5, Weight: 0.51 lbs |
| Seatpost | Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 0.62 lbs Type: Rigid |
| Pedals | Iridium VP-536 |
| Grips | Canyon Lock-On Grips |
Groupset
| Rear Derailleur | Shimano Deore M6100, Cage length: long, Weight: 0.78 lbs |
|---|---|
| Crank | FSA 745 E-Bike Crank for Bosch Gen4 |
| Shifters | Shimano Deore M6100 12s, Weight: 0.31 lbs |
| Cassette | Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
| Chain | Shimano CN-M6100 |
| Chain Guide | Canyon GP0432-01 Chain Guide |
| Brakes | SRAM DB8 Type: Hydraulic Disc |
Wheels
| Rims | RODI TRYP30 EVO, Axle dimension: 15×110 mm, Rotor mount: Center Lock, Weight: 2.40 lbs | RODI TRYP30 EVO, Axle dimension: 12×148 mm, Rotor mount: Center Lock, Weight: 2.62 lbs |
|---|---|
| Tires | Schwalbe Nobby Nic Performance, 2.6, Width: 2.6″ |
| Disc Rotors | SRAM Centerline Rounded, Size: 200 mm, Weight: 0.50 lbs | SRAM Centerline Rounded, Size: 180 mm, Weight: 0.43 lbs |
Electric Components
| Motor | Bosch Performance Line CX |
|---|---|
| Battery | Bosch PowerTube 750Wh |
| Charger | Bosch 4A |
