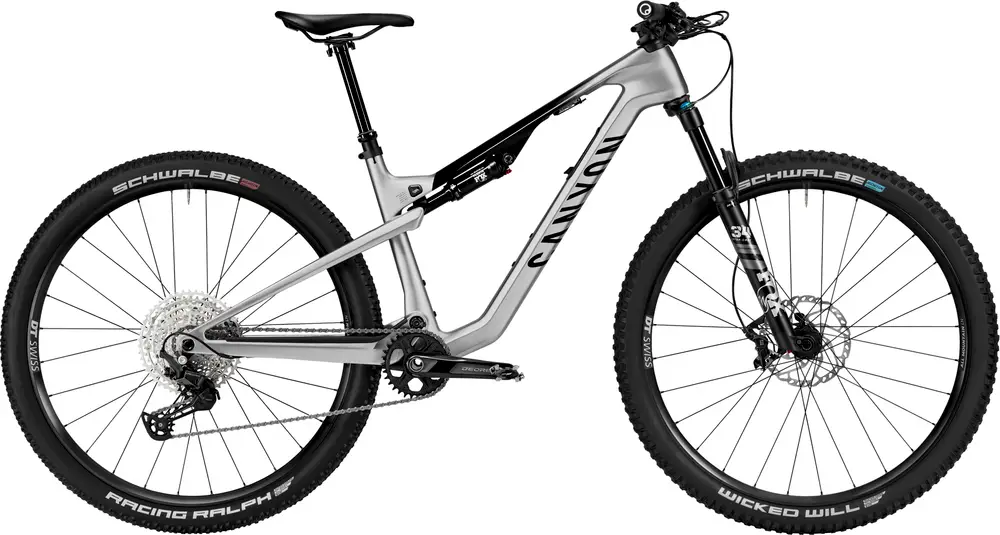

Canyon Lux Trail CF 6 2024 Overview
Build
| Frame |
Canyon Lux Trail CF, A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3., Axle dimension: 12×148 mm, Material: Carbon (CF) BB Standard:Â BSA, 68mm, Threaded Colors:Â Chrome Level 1; Mirage Blue |
|---|---|
| Fork |
FOX 34 Stepcast Performance 3-Pos Remote, Axle dimension: 15×110 mm, Stanchion Diameter: 34 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Volume Spacer Oe: 1, Weight: 3.62 lbs Travel:Â 120mm Spring Type:Â Air |
| Shock |
FOX Float SL Performance Elite Remote Travel:Â 100mm |
| Bottom Bracket |
Token BSA, Bottom bracket standard: BSA 68/73, Weight: 0.22 lbs |
| Stem |
Race Face Ride, Fork steer tube diameter: 1 1/8″, Clamping diameter: 35,0 mm |
| Handlebar |
Race Face Ride Riserbar, Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 10 mm |
| Saddle |
Ergon SM10 Sport, Gender: Male, Weight: 0.67 lbs |
| Seatpost |
FOX Transfer SL Performance Elite, Clamp diameter: 31,6 mm, Material: Aluminium (AL), Weight: 0.96 lbs Type:Â Dropper |
| Pedals |
None included |
| Grips |
Ergon GXR |
Groupset
| Rear Derailleur |
Shimano Deore M6100, Cage length: long, Weight: 0.78 lbs |
|---|---|
| Crank |
Shimano Deore M6120, Number of chainrings: 1 |
| Shifters |
Shimano Deore M6100, Weight: 0.30 lbs |
| Cassette |
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
| Chain |
Shimano CN-M6100 |
| Brakes |
Shimano SLX M7120, Number of pistons: 4 | Shimano SLX M7110, Number of pistons: 2 Type:Â Hydraulic Disc |
Wheels
| Rims |
DT Swiss AM LN 370, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Weight: 2.31 lbs | DT Swiss AM LN 370, Axle dimension: 12×148 mm, Rotor mount: IS 6-bolt, Weight: 2.57 lbs |
|---|---|
| Tires |
Schwalbe Racing Ralph SG TLE EVO 2.35″, Width: 2.35″, Weight: 1.65 lbs | Schwalbe Wicked Will SR TLE EVO 2.4″, Width: 2.4″, Weight: 1.80 lbs |
| Disc Rotors |
Shimano RT66 160, Size: 160 mm, Weight: 0.24 lbs | Shimano RT66 180, Size: 180 mm, Weight: 0.31 lbs |
