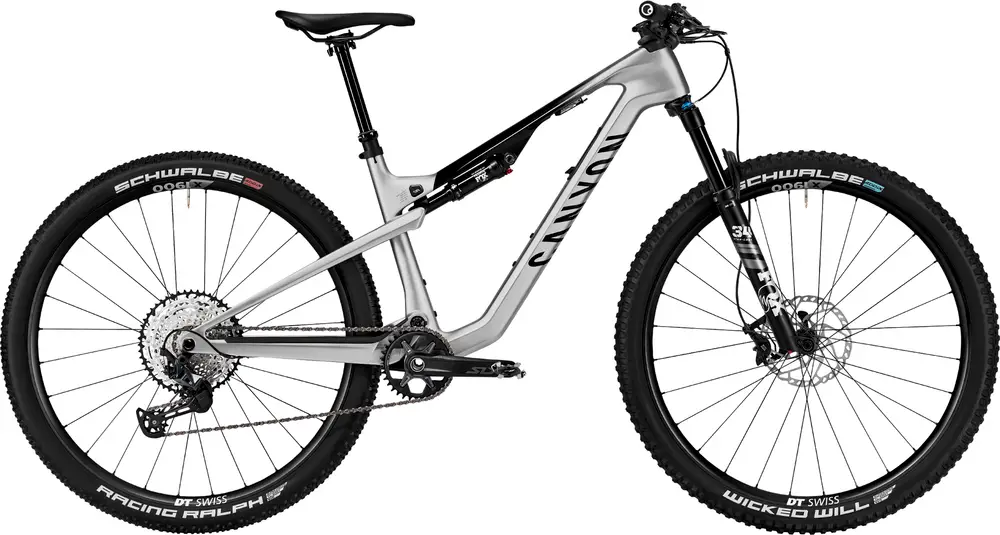

Canyon Lux Trail CF 7 2024 Overview
Build
| Frame | Canyon Lux Trail CF, A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3., Axle dimension: 12×148 mm, Material: Carbon (CF) BB Standard: BSA, 68mm, Threaded Colors: Chrome Level 1; Late Sunset |
|---|---|
| Fork | FOX 34 Stepcast Performance 3-Pos Remote, Axle dimension: 15×110 mm, Stanchion Diameter: 34 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Volume Spacer Oe: 1, Weight: 3.35 lbs Travel: 120mm Spring Type: Air |
| Shock | FOX Float SL Performance Elite Remote Travel: 115mm |
| Bottom Bracket | Shimano MT800, Bottom bracket standard: BSA 68/73, Weight: 0.22 lbs |
| Stem | Race Face Ride, Fork steer tube diameter: 1 1/8″, Clamping diameter: 35,0 mm |
| Handlebar | Race Face Ride Riserbar, Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 10 mm |
| Saddle | Ergon SM10 Sport, Gender: Male, Weight: 0.67 lbs |
| Seatpost | FOX Transfer SL Performance Elite, Clamp diameter: 31,6 mm, Material: Aluminium (AL), Weight: 0.96 lbs Type: Dropper |
| Pedals | None included |
| Grips | Ergon GXR |
Groupset
| Rear Derailleur | Shimano SLX M7100, Cage length: long, Weight: 0.63 lbs |
|---|---|
| Crank | Shimano SLX M7120, Number of chainrings: 1 |
| Shifters | Shimano SLX M7100, Weight: 0.32 lbs |
| Cassette | Shimano SLX M7100, Number of sprockets: 12, Range: 10-51 |
| Chain | Shimano CN-M7100 12s |
| Brakes | Shimano SLX M7100, Number of pistons: 2 | Shimano M7110, Number of pistons: 2 Type: Hydraulic Disc |
Wheels
| Rims | DT Swiss X 1900 Spline, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Weight: 2.12 lbs | DT Swiss X 1900 Spline, Axle dimension: 12×148 mm, Rotor mount: IS 6-bolt, Weight: 2.38 lbs |
|---|---|
| Tires | Schwalbe Racing Ralph SG TLE EVO 2.35″, Width: 2.35″, Weight: 1.65 lbs | Schwalbe Wicked Will SR TLE EVO 2.4″, Width: 2.4″, Weight: 1.80 lbs |
| Disc Rotors | Shimano RT66 160, Size: 160 mm, Weight: 0.24 lbs | Shimano RT66 180, Size: 180 mm, Weight: 0.31 lbs |
