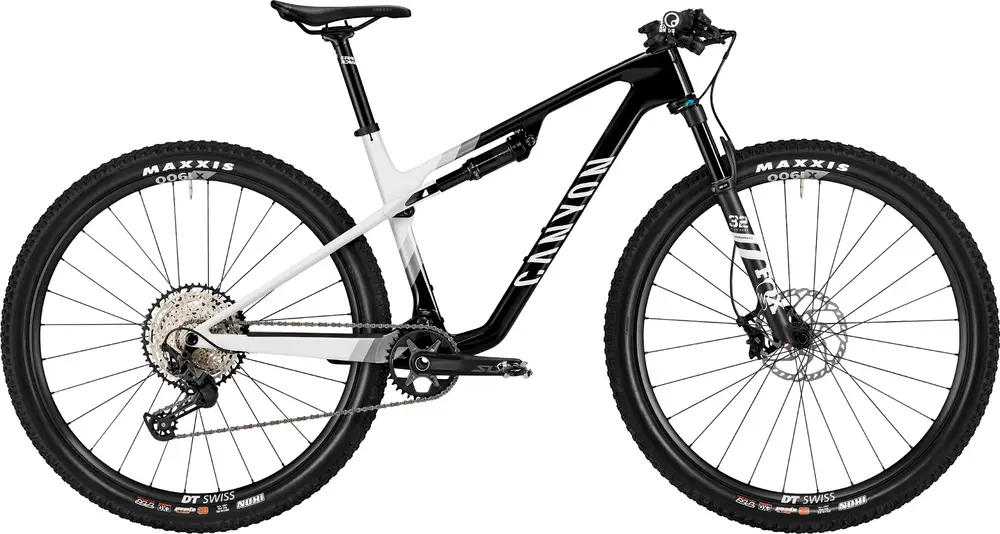

Canyon Lux World Cup CF 6 2024 Overview
Build
| Frame | Canyon Lux WC CF, Lightweight full-suspension carbon XC frame, featuring the World Championship-winning design DNA of the flagship Lux World Cup CFR., Axle dimension: 12×148 mm, Material: Carbon (CF) BB Standard: BB86/BB92, Press Fit Colors: Vermillion 1; Podium Black; Race Green |
|---|---|
| Fork | FOX 32 Step-Cast Performance Remote, Axle dimension: 15×110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Weight: 10 g Travel: 100mm Spring Type: Air |
| Shock | FOX Float DPS Performance Elite Remote Travel: 100mm |
| Bottom Bracket | Shimano Pressfit BB71, Bottom bracket standard: PF 89,5/92, Weight: 71 g |
| Stem | Race Face Ride, Fork steer tube diameter: 1 1/8″ – 1 1/4″ |
| Handlebar | Race Face Ride Rise, Clamping diameter: 31,8 mm, Width: 740 mm |
| Saddle | Ergon SR10 Pro Sport, Weight: 250 g |
| Seatpost | Race Face Ride, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 295 g Type: Rigid |
| Pedals | None included |
| Grips | Ergon GA20 |
Groupset
| Rear Derailleur | Shimano SLX M7100, Cage length: long, Weight: 286 g |
|---|---|
| Crank | Shimano SLX M7120, Number of chainrings: 1 |
| Shifters | Shimano SLX M7100, Weight: 143 g |
| Cassette | Shimano SLX M7100, Number of sprockets: 12, Range: 10-51 12S |
| Chain | Shimano CN-M7100 12s |
| Brakes | Shimano SLX M7100 | Shimano SLX M7110 Type: Hydraulic Disc |
Wheels
| Rims | DT Swiss X 1900 Spline, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Weight: 881 g | DT Swiss X 1900 Spline, Axle dimension: 12×148 mm, Rotor mount: IS 6-bolt, Weight: 1.00 kg |
|---|---|
| Tires | Maxxis Ikon EXO MaxxSpeed, Width: 2.35″, Weight: 835 g |
| Disc Rotors | Shimano RT66 160, Size: 160 mm, Weight: 110 g | Shimano RT66 180, Size: 180 mm, Weight: 140 g |
