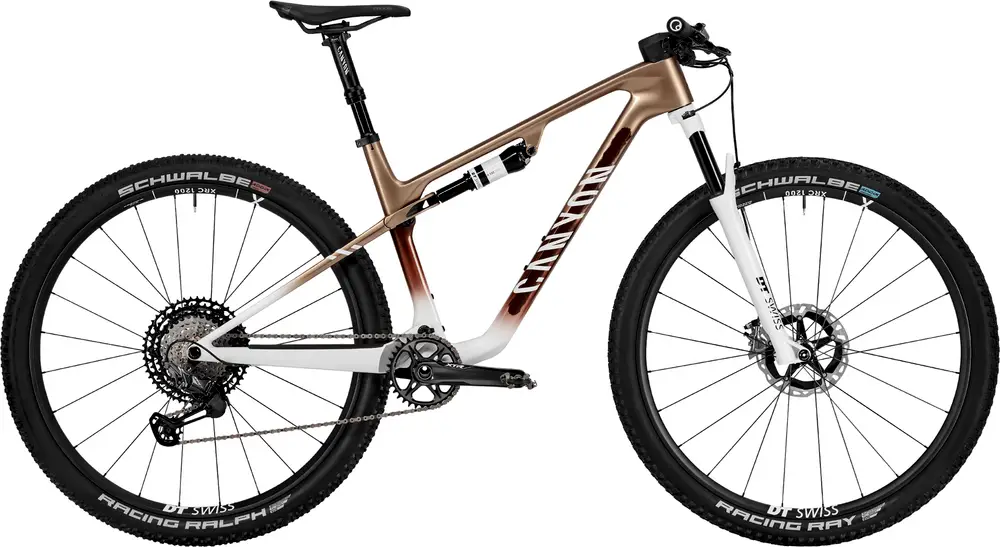

Canyon Lux World Cup CFR Untamed 2024 Overview
Build
| Frame |
Canyon Lux WC CFR, Axle dimension: 12×148 mm, Material: Carbon (CFR) BB Standard:Â BB86/BB92, 86mm, Press Fit Color:Â Springbok |
|---|---|
| Fork |
DT Swiss F 232 ONE, Axle dimension: 15×110 mm, Travel: 110 mm, Fork steer tube diameter: 1 1/8″ – 1,5″ Travel:Â 110mm |
| Shock |
DT Swiss R 232 ONE, Weight: 269 g Travel:Â 100mm |
| Bottom Bracket |
Ceramicspeed BB86 Coated, Bottom bracket standard: PF 86,5, Weight: 80 g |
| Saddle |
Ergon SR10 Pro Carbon, Gender: Unisex, Weight: 195 g |
| Seatpost |
DT Swiss D 232 ONE, Clamp diameter: 30,9 mm, Material: Carbon (CF), Weight: 369 g Type:Â Dropper |
| Pedals |
None included |
| Grips |
Ergon GXR |
Groupset
| Rear Derailleur |
Shimano XTR, 12-speed, Cage length: long, Weight: 230 g |
|---|---|
| Crank |
Shimano XTR M9125 34T, Number of chainrings: 1 |
| Shifters |
Shimano XTR, 12-speed, Weight: 131 g |
| Cassette |
Shimano XTR CS-M9101 12s 10-51, Number of sprockets: 12, Range: 10-51 12S |
| Chain |
Shimano CN-M9100 12s |
| Brakes |
Shimano XTR, Number of pistons: 2 | Shimano M9110, Number of pistons: 2 Type:Â Hydraulic Disc |
Wheels
| Rims |
DT Swiss XRC 1200, Axle dimension: 15×110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 30 mm, Rim material: Carbon, Weight: 597 g | DT Swiss XRC 1200, Axle dimension: 12×148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 30 mm, Rim material: Carbon, Weight: 714 g |
|---|---|
| Tires |
Schwalbe Racing Ralph SG TLE EVO 2.35″, Width: 2.35″, Weight: 750 g | Schwalbe Racing Ray, Width: 2,35″, Weight: 801 g |
| Disc Rotors |
Shimano RT-MT900, 180mm, Size: 180 mm, Weight: 146 g | Shimano RT-MT900, Size: 160 mm, Weight: 122 g |
