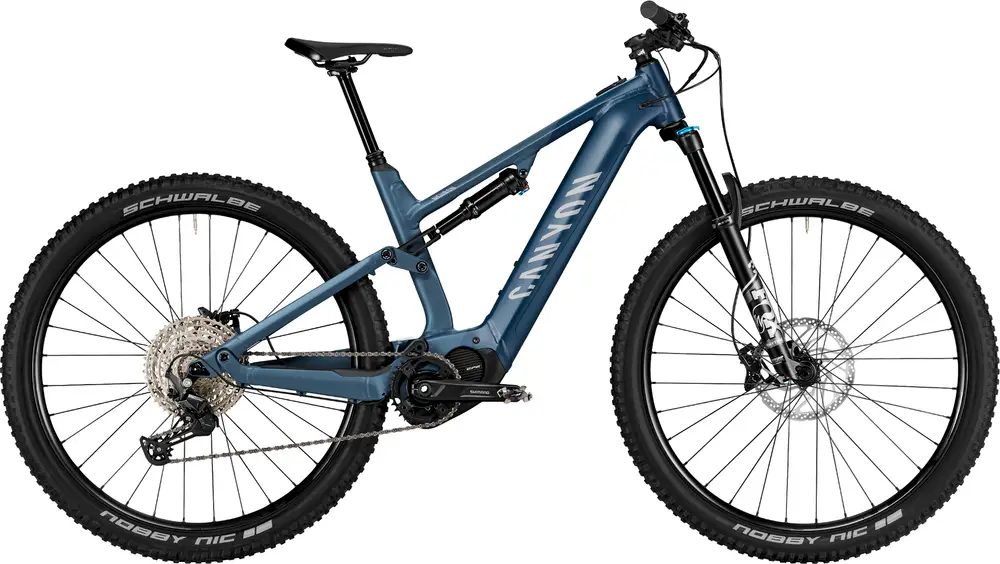

Canyon Neuron:ON 6 2024 Overview
Build
| Frame |
Canyon Neuron:ON, Canyon Neuron:ON aluminium frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12×148 mm, Material: Aluminium (AL) BB Standard:Â STEPS, Press Fit Colors:Â Stealth; Cool Glacier; Washed Denim |
|---|---|
| Fork |
FOX 34 Rhythm Grip, Stanchion Diameter: 34 mm, Travel: 130 mm, Fork steer tube diameter: 1 1/8″ – 1 1/4″ Travel:Â 130mm Spring Type:Â Air |
| Shock |
FOX FLOAT DPS Performance, Weight: 282 g Travel:Â 130mm |
| Bottom Bracket |
STEPS, press-fit |
| Stem |
Canyon:ON Stem, 35mm clamp diameter, 60mm length |
| Handlebar |
Canyon:ON HB0056 Riser bar, Aluminum., Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 20 mm |
| Saddle |
Fizik Terra Alpaca X5, Weight: 230 g |
| Seatpost |
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 567 g Type:Â Dropper |
| Pedals |
Iridium VP-536 |
| Grips |
Canyon Lock-On |
Groupset
| Rear Derailleur |
Shimano Deore M6100, Cage length: long, Weight: 354 g |
|---|---|
| Crank |
Shimano Steps E-MTB |
| Shifters |
Shimano Deore M6100 12s, Weight: 139 g |
| Cassette |
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
| Chain |
Shimano CN-M6100 |
| Chain Guide |
Canyon Chainguide EP1001-02 |
| Brakes |
Shimano MT420 | Shimano BR-MT410 Deore Type:Â Hydraulic Disc |
Wheels
| Rims |
RODI TRYP30 EVO, Axle dimension: 15×110 mm, Rotor mount: Center Lock, Weight: 1.09 kg | RODI TRYP30 EVO, Axle dimension: 12×148 mm, Rotor mount: Center Lock, Weight: 1.19 kg |
|---|---|
| Tires |
Schwalbe Nobby Nic Performance, 2.6, Width: 2.6″ |
| Disc Rotors |
Shimano SM-RT30, Size: 203 mm, Weight: 190 g | Shimano RT-EM300 STEPS, Size: 203 mm, Weight: 10 g |
Electric Components
| Motor |
Shimano EP600 |
|---|---|
| Battery |
Shimano BT-E806 |
| Display |
Shimano SC-EN600 Display 35 |
| Charger |
Shimano STEPS – Battery Charger |
