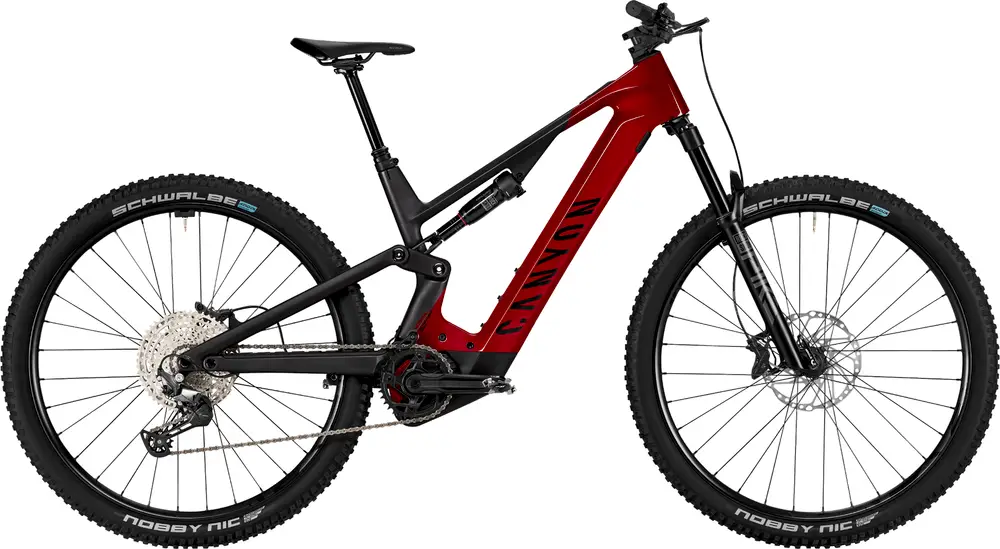

Canyon Neuron:ON CF 7 2024 Overview
Build
| Frame | Canyon Neuron:ON CF, Elegant, compliant, light Canyon Neuron:ON carbon frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12×148 mm, Material: Carbon (CF) BB Standard: Bosch, Press Fit Colors: Stealth; Desert Adventure; Sunrise Adventure |
|---|---|
| Fork | RockShox Pike, Travel: 140 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Weight: 2.34 kg Travel: 140mm Spring Type: Air |
| Shock | RockShox Deluxe Select R, Weight: 375 g Travel: 140mm |
| Bottom Bracket | Bosch, press-fit |
| Stem | Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8″, Clamping diameter: 35,0 mm |
| Handlebar | Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise |
| Saddle | Fizik Terra Alpaca X5, Weight: 230 g |
| Seatpost | Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 567 g Type: Dropper |
| Pedals | Iridium VP-536 |
| Grips | Canyon Lock-On Grips |
Groupset
| Rear Derailleur | Shimano Deore M6100, Cage length: long, Weight: 354 g |
|---|---|
| Crank | FSA 762 Forged Crank Bosch gen4 |
| Shifters | Shimano Deore M6100 12s, Weight: 139 g |
| Cassette | Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
| Chain | Shimano CN-M6100 |
| Chain Guide | Canyon Chainguide M091/M129 |
| Brakes | Shimano M6120 Type: Hydraulic Disc |
Wheels
| Rims | RODI TRYP30 EVO, Axle dimension: 15×110 mm, Rotor mount: Center Lock, Weight: 1.09 kg | RODI TRYP30 EVO, Axle dimension: 12×148 mm, Rotor mount: Center Lock, Weight: 1.19 kg |
|---|---|
| Tires | Schwalbe Nobby Nic 29×2.4 black skin, Width: 2.4″ |
| Disc Rotors | Shimano RT64, Size: 203 mm, Weight: 206 g | Shimano EM600 STEPS rear rotor, 203mm, Size: 203 mm, Weight: 203 g |
Electric Components
| Motor | Bosch Performance Line CX |
|---|---|
| Battery | Bosch PowerTube 750Wh |
| Charger | Bosch 4A |
