Build

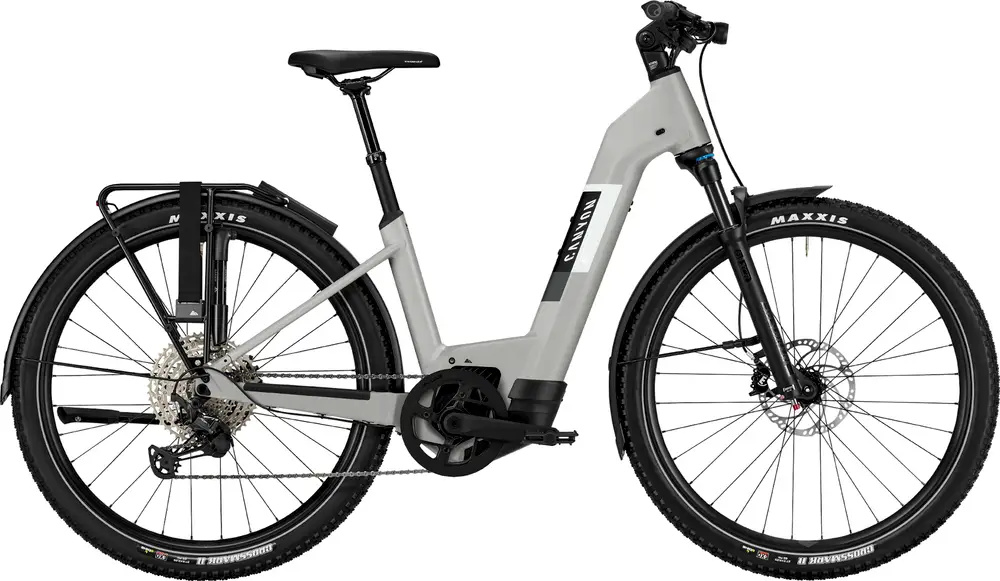

| Frame | Canyon Pathlite:ON Step-Through, A tough, feature-packed, easy-to-mount aluminium e-touring bike frame with a comfortable riding position., Axle dimension: 12×148 mm, Material: Aluminium (AL) Colors: Stone Grey; Tundra Green; Outback Orange |
|---|---|
| Fork | SR Suntour XCR34 Air, Axle dimension: 15×110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8″, Weight: 2.34 kg Travel: 100mm Spring Type: Air |
| Stem | Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm |
| Handlebar | Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle | SD SR ESSENZA PLUS ATHLETIC |
| Seatpost | Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g Type: Dropper |
| Pedals | Iridium VP-536 |
| Grips | Ergon GA3 |
Groupset
| Rear Derailleur | Shimano Deore XT M8100, Cage length: long, Weight: 286 g |
|---|---|
| Crank | FSA CK-220, Number of chainrings: 1 |
| Shifters | Shimano Deore M6100, Weight: 136 g |
| Cassette | Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
| Chain | Shimano CN-M6100 |
| Brakes | Magura MT30 hydraulic disc brake, Number of pistons: 4 | Magura MT thirty rear, Number of pistons: 2 Type: Hydraulic Disc |
Wheels
| Rims | Alexrims MD25 | Promax DR850, Axle dimension: 15×110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 905 g | Alexrims MD25 | Promax DR850 SH12, Axle dimension: 12×148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 950 g |
|---|---|
| Tires | Maxxis Crossmark II Reflexstrip Clincher, Width: 2,25″, Weight: 750 g |
| Disc Rotors | Magura MDR-C, Size: 180 mm, Weight: 138 g |
Electric Components
| Motor | Bosch Performance Line CX |
|---|---|
| Battery | Bosch PowerTube 750Wh |
| Display | Bosch Purion 200 |
| Charger | Bosch 4A |
Accessories
| Lights | Supernova Mini 2 Pro | Sate-Lite M12 Rear Light |
|---|---|
| Fenders | Plastic mudguards | Canyon GP0563-01 Fender Kit |
| Racks | Canyon Rack |
