Build

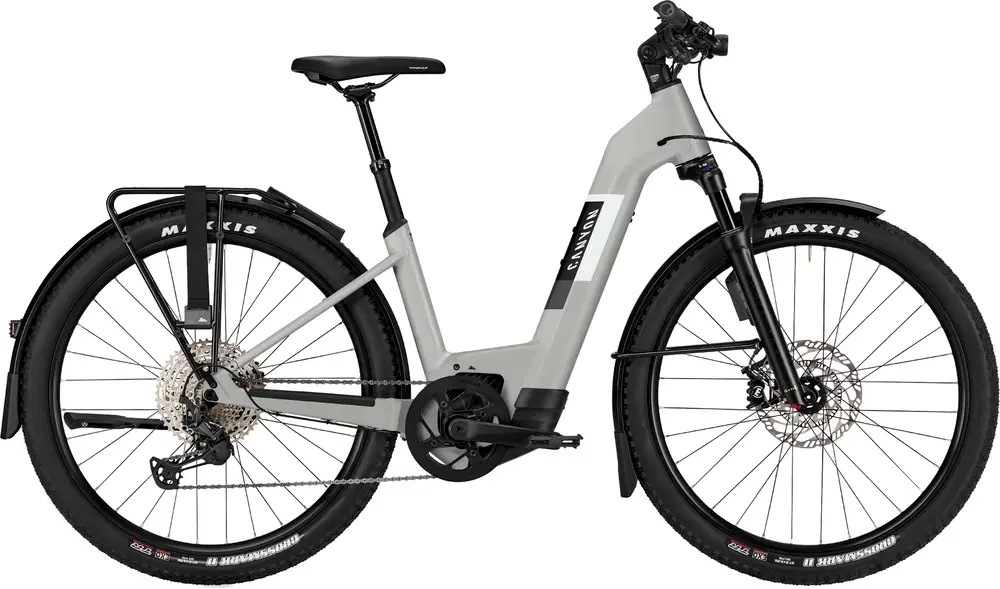

| Frame | Canyon Pathlite:ON Step-Through, A tough, feature-packed, easy-to-mount aluminium e-touring bike frame with a comfortable riding position., Axle dimension: 12×148 mm, Material: Aluminium (AL) Colors: Stone Grey; Tundra Green; Outback Orange |
|---|---|
| Fork | SR Suntour MOBIE35 BOOST EQ, Axle dimension: 15×110 mm, Stanchion Diameter: 35 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Weight: 2.29 kg Travel: 100mm |
| Stem | Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm |
| Handlebar | Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle | SD SR ESSENZA PLUS ATHLETIC |
| Seatpost | Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g Type: Dropper |
| Pedals | Iridium VP-536 |
| Grips | Ergon GA3 |
Groupset
| Rear Derailleur | Shimano Deore XT M8100, Cage length: long, Weight: 286 g |
|---|---|
| Crank | FSA CK-220, Number of chainrings: 1 |
| Shifters | Shimano DEORE XT M8100, Weight: 130 g |
| Cassette | Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
| Chain | Shimano CN-M6100 |
| Brakes | Magura MT C hydraulic disc brake, ABS | Magura MT C Type: Hydraulic Disc |
Wheels
| Rims | Alex Rims MXD7, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 870 g | Alexrims MXD7 11S, Axle dimension: 12×148 mm, Rotor mount: IS 6-bolt, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 1.03 kg |
|---|---|
| Tires | Maxxis Crossmark II EXO TR, Weight: 735 g |
| Disc Rotors | Magura MDR-C, Size: 203 mm, Weight: 183 g | Magura MDR-C, Size: 180 mm, Weight: 138 g |
Electric Components
| Motor | Bosch Performance Line CX |
|---|---|
| Battery | Bosch PowerTube 750Wh |
| Display | Bosch Purion 200 |
| Charger | Bosch 4A |
Accessories
| Lights | Supernova Mini 2 Pro | Supernova E3 Tail Light 2 |
|---|---|
| Racks | Aluminium Fenders with Canyon Rack |
