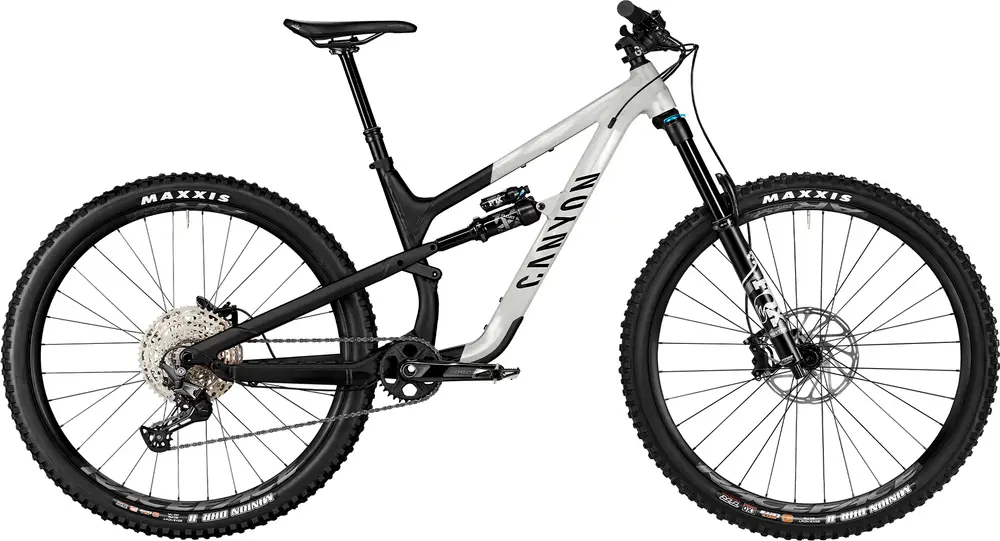

Canyon Spectral 29 AL 5 2024 Overview
Build
| Frame | Canyon Spectral, Aluminium frame with optimised frame forms for increased stiffness and strength with thinner walls. Category 4., Axle dimension: 12×148 mm, Material: Aluminium (AL) BB Standard: BSA, 68mm, Threaded Colors: Sand; Real Raw; Flat Earth |
|---|---|
| Fork | FOX 36 Rhythm Grip, Axle dimension: 15×110 mm, Stanchion Diameter: 36 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Weight: 1.97 kg Travel: 160mm Spring Type: Air |
| Shock | FOX X Performance 2-Position Travel: 150mm |
| Bottom Bracket | Race Face BSA, Bottom bracket standard: BSA 68/73 |
| Stem | Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails., Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar | Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle | Ergon SM10 Enduro, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain., On certain models, this saddle may be substituted for an alternate, equivalent Selle San Marco model., Potentially affected models include:, Spectral 6 27 (Model #3184), Spectral 6 29 (Model #3185) |
| Seatpost | Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g Type: Dropper |
| Pedals | None included |
| Grips | Canyon G5 |
Groupset
| Rear Derailleur | Shimano Deore M6100, Cage length: long, Weight: 317 g |
|---|---|
| Crank | Race Face RIDE |
| Shifters | Shimano Deore M6100 |
| Cassette | SunRace CSMZ800 12s 11-51T, Number of sprockets: 12 |
| Chain | Shimano CN-M6100 |
| Brakes | SRAM Matchmaker Clamp | SRAM DB8 | SRAM DB8 Type: Hydraulic Disc |
Wheels
| Rims | Raceface AR30, Rotor mount: Center Lock, Weight: 923 g | Raceface AR30, Rotor mount: Center Lock, Weight: 1.04 kg |
|---|---|
| Tires | Maxxis Minion DHR II Exo, Width: 2,4″, Weight: 955 g | Maxxis Minion DHR II Exo+, Width: 2,4″, Weight: 1.08 kg |
| Disc Rotors | SRAM Centerline Rounded, Size: 200 mm, Weight: 190 g |
