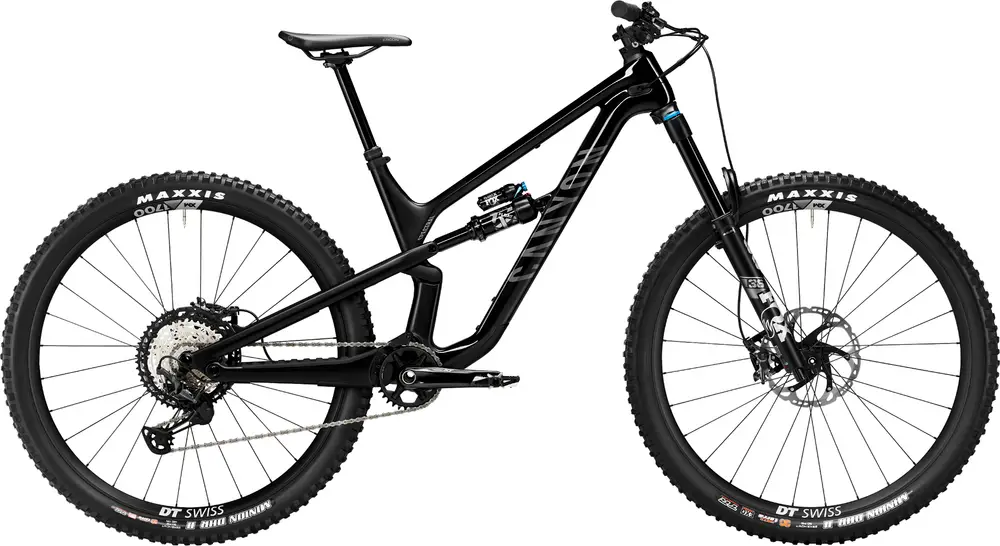

Canyon Spectral 29 CF 8 2024 Overview
Build
| Frame |
Canyon Spectral CF 29, Full-carbon MTB frame. Built to shred with a long, slack, progressive geometry. With Flip Chip system for simple geometry adjustment. Category 4., Axle dimension: 12×148 mm, Material: Carbon (CF) BB Standard:Â BSA, 68mm, Threaded Colors:Â Exhaust Black; Korma Spice |
|---|---|
| Fork |
FOX 36 Performance Elite Grip2, Axle dimension: 15×110 mm, Stanchion Diameter: 36 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Weight: 1.97 kg Travel:Â 160mm Spring Type:Â Air |
| Shock |
FOX Float X Performance Elite Travel:Â 150mm |
| Bottom Bracket |
Shimano MT800, Bottom bracket standard: BSA 68/73, Weight: 100 g |
| Stem |
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails., Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar |
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle |
Ergon SM10 Enduro Comp, Gender: Unisex, Weight: 265 g |
| Seatpost |
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL) Type:Â Dropper |
| Pedals |
None included |
| Grips |
Canyon G5 |
Groupset
| Rear Derailleur |
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g |
|---|---|
| Crank |
Shimano DEORE XT M8120, Number of chainrings: 1 |
| Shifters |
Shimano DEORE XT M8100, Weight: 130 g |
| Cassette |
Shimano Deore XT M8100, Number of sprockets: 12, Range: 10-51 12S |
| Chain |
Shimano M6100 |
| Chain Guide |
Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02 |
| Brakes |
Shimano DEORE XT M8120 Type:Â Hydraulic Disc |
Wheels
| Rims |
DT Swiss XM1700 29″, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Weight: 903 g | DT Swiss XM1700 29″, Rotor mount: IS 6-bolt, Weight: 980 g |
|---|---|
| Tires |
Maxxis Minion DHR II Exo, Width: 2,4″, Weight: 955 g | Maxxis Minion DHR II Exo+, Width: 2,4″, Weight: 1.08 kg |
| Disc Rotors |
Shimano RT86, 203mm, Size: 203 mm |
