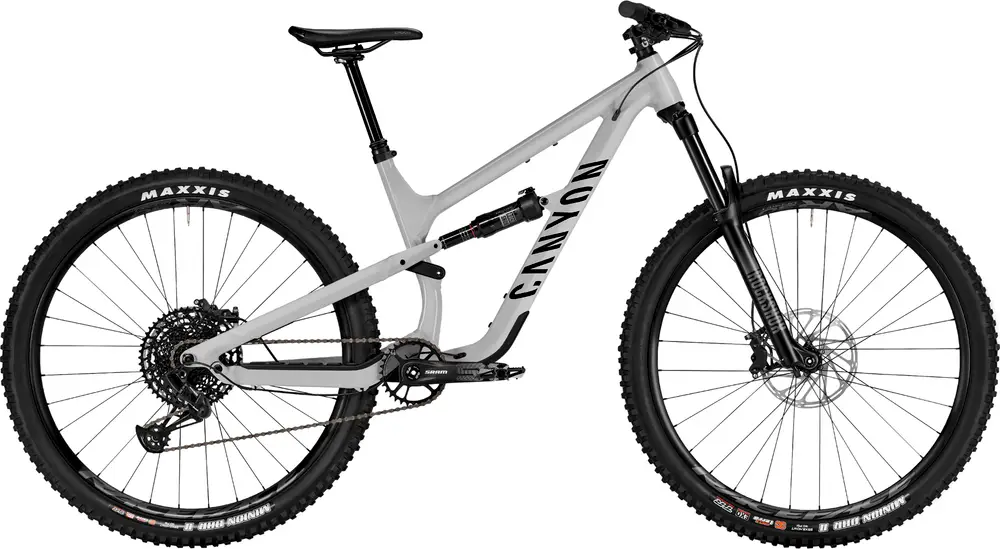

Canyon Spectral 5 2024 Overview
Build
| Frame | Canyon Spectral, Aluminium frame with optimised frame forms for increased stiffness and strength with thinner walls. Category 4., Axle dimension: 12×148 mm, Material: Aluminium (AL), Weight: 7.14 lbs BB Standard: BSA, 73mm, Threaded Colors: Funkturm Grey; Dark Honey |
|---|---|
| Fork | RockShox 35 Silver TK, Axle dimension: 15×110 mm, Stanchion Diameter: 35 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Weight: 5.03 lbs Travel: 150mm |
| Shock | RockShox Deluxe Select+, Weight: 0.83 lbs |
| Bottom Bracket | SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 0.17 lbs |
| Stem | Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails., Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar | Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle | Ergon SM10 Enduro, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain., On certain models, this saddle may be substituted for an alternate, equivalent Selle San Marco model., Potentially affected models include:, Spectral 6 27 (Model #3184), Spectral 6 29 (Model #3185) |
| Seatpost | Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.25 lbs Type: Dropper |
| Pedals | None included |
| Grips | Canyon G5 |
Groupset
| Rear Derailleur | SRAM SX Eagle, Weight: 0.90 lbs |
|---|---|
| Crank | SRAM SX Eagle DUB, Number of chainrings: 1 |
| Shifters | SRAM SX Eagle, Weight: 0.29 lbs |
| Cassette | SRAM PG-1210 Eagle, Number of sprockets: 12, Range: 11-50 12S |
| Chain | SRAM SX Eagle |
| Brakes | SRAM DB8 Type: Hydraulic Disc |
Wheels
| Rims | RaceFace AR30 | Shimano MT400, Axle dimension: 15×110 mm, Rotor mount: Center Lock, Weight: 0.09 lbs | RaceFace AR30 | Shimano MT400, Axle dimension: 12×148 mm, Rotor mount: Center Lock, Weight: 2.98 lbs |
|---|---|
| Tires | Maxxis Minion DHR II Exo, Width: 2,4″, Weight: 2.28 lbs | Maxxis Minion DHR II Exo+, Width: 2,4″, Weight: 2.45 lbs |
| Disc Rotors | SRAM Centerline Rounded, Size: 200 mm, Weight: 0.50 lbs |
