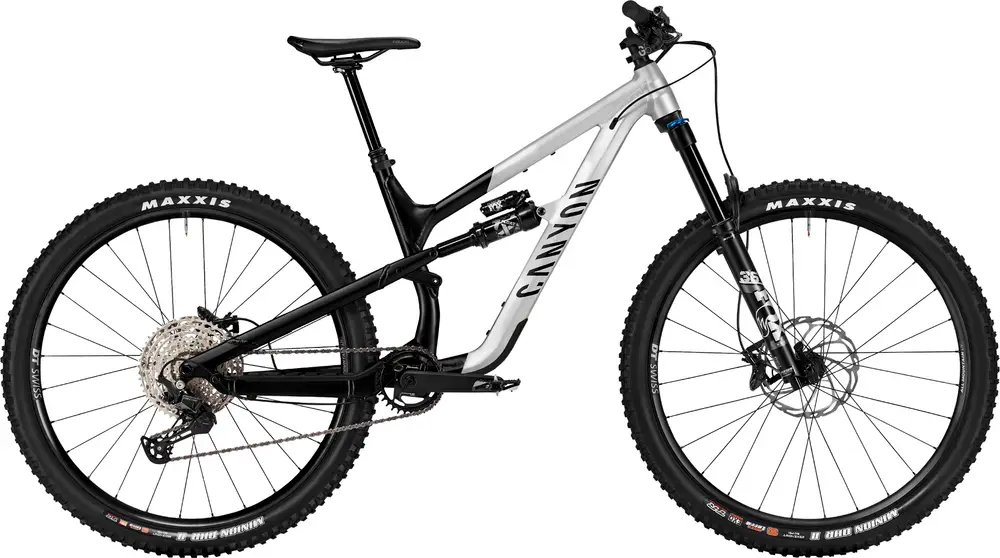

Canyon Spectral 6 2024 Overview
Build
| Frame |
Canyon Spectral, Aluminium frame with optimised frame forms for increased stiffness and strength with thinner walls. Category 4., Axle dimension: 12×148 mm, Material: Aluminium (AL), Weight: 7.14 lbs BB Standard:Â BSA, 68mm, Threaded Colors:Â Dark Honey; Raw’kn’roll |
|---|---|
| Fork |
FOX 36 Rhythm Grip, Axle dimension: 15×110 mm, Stanchion Diameter: 36 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Volume Spacer Oe: 3/7, Weight: 4.26 lbs Travel:Â 150mm Spring Type:Â Air |
| Shock |
FOX X Performance 2-Position |
| Bottom Bracket |
Token BSA, Bottom bracket standard: BSA 68/73, Weight: 0.22 lbs |
| Stem |
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails., Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar |
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle |
Ergon SM10 Enduro, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain., On certain models, this saddle may be substituted for an alternate, equivalent Selle San Marco model., Potentially affected models include:, Spectral 6 27 (Model #3184), Spectral 6 29 (Model #3185) |
| Seatpost |
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.25 lbs Type:Â Dropper |
| Pedals |
None included |
| Grips |
Canyon G5 |
Groupset
| Rear Derailleur |
Shimano Deore M6100, Cage length: long, Weight: 0.78 lbs |
|---|---|
| Crank |
Miranda Delta, Number of chainrings: 1 |
| Shifters |
Shimano Deore M6100, Weight: 0.30 lbs |
| Cassette |
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
| Chain |
Shimano CN-M6100 |
| Brakes |
Shimano Deore M6120, Number of pistons: 4 Type:Â Hydraulic Disc |
Wheels
| Rims |
DT Swiss AM LN 370, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Weight: 2.31 lbs | DT Swiss AM LN 370, Axle dimension: 12×148 mm, Rotor mount: IS 6-bolt, Weight: 2.57 lbs |
|---|---|
| Tires |
Maxxis Minion DHR II Exo, Width: 2,4″, Weight: 2.28 lbs | Maxxis Minion DHR II Exo+, Width: 2,4″, Weight: 2.45 lbs |
| Disc Rotors |
Hayes D-Series, Size: 203 mm, Weight: 0.41 lbs |
