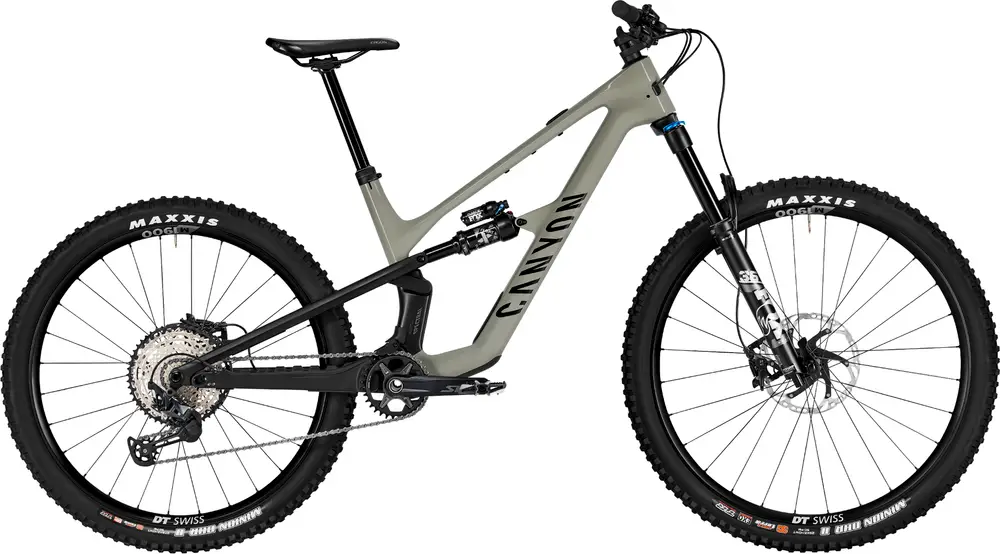

Canyon Spectral CF 7 2024 Overview
Build
| Frame | Canyon Spectral CF, Full-carbon frame with optimised stiffness and compliance. Convertable wheelsize and geometry adjustment. Category 4 strength., Axle dimension: 12×148 mm, Material: Carbon (CF), Weight: 0.58 lbs BB Standard: BSA, 68mm, Threaded Colors: Stealth; Barely Olive |
|---|---|
| Fork | FOX 36 Rhythm Grip, Axle dimension: 15×110 mm, Stanchion Diameter: 36 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Volume Spacer Oe: 3/7, Weight: 4.26 lbs Travel: 150mm Spring Type: Air |
| Shock | FOX X Performance 2-Position, Weight: 0.55 lbs Travel: 140mm |
| Bottom Bracket | Token BSA, Bottom bracket standard: BSA 68/73, Weight: 0.22 lbs |
| Stem | Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails., Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar | Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle | Ergon SM10 Enduro, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain., On certain models, this saddle may be substituted for an alternate, equivalent Selle San Marco model., Potentially affected models include:, Spectral 6 27 (Model #3184), Spectral 6 29 (Model #3185) |
| Seatpost | Canyon SP0070-01, Air cartridge. Cable actuated., Travel: Dependent on frame size (see component geometry table.), Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 0.07 lbs Type: Dropper |
| Pedals | None included |
| Grips | Canyon G5 |
Groupset
| Rear Derailleur | Shimano SLX M7100, Cage length: long, Weight: 0.63 lbs |
|---|---|
| Crank | Shimano SLX M7120, Number of chainrings: 1 |
| Shifters | Shimano SLX M7100, Weight: 0.32 lbs |
| Cassette | Shimano Deore XT M8100, Number of sprockets: 12, Range: 10-51 12S |
| Chain | Shimano CN-M6100 |
| Chain Guide | Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02 |
| Brakes | Shimano SLX M7120, Number of pistons: 4 | Shimano Deore SLX M7120 Type: Hydraulic Disc |
Wheels
| Rims | DT Swiss M1900, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Weight: 2.12 lbs | DT Swiss M1900, Rotor mount: IS 6-bolt, Weight: 2.47 lbs |
|---|---|
| Tires | Maxxis Minion DHR II Exo, Width: 2,4″, Weight: 2.28 lbs | Maxxis Minion DHR II Exo+, Width: 2,4″, Weight: 2.45 lbs |
| Disc Rotors | Shimano SM-RT76, Size: 203 mm, Weight: 0.45 lbs |
