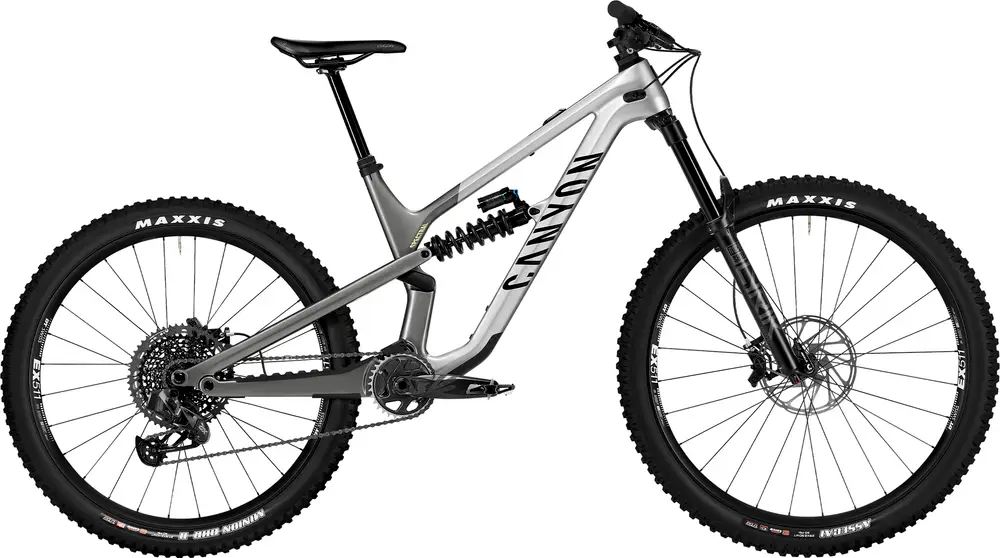

Canyon Spectral CF 8 2024 Overview
Build
| Frame |
Canyon Spectral CF, Full-carbon frame with optimised stiffness-to-weight ratio and integrated K.I.S. technology. Our famous triple phase suspension design with the Flip Chip system for simple geometry adjustment., Axle dimension: 12×148 mm, Material: Carbon (CF) BB Standard:Â BSA, 73mm, Threaded Color:Â Reflecting Grey |
|---|---|
| Fork |
RockShox Lyrik Select+ RC, Axle dimension: 15×110 mm, Stanchion Diameter: 35 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Weight: 5.16 lbs Travel:Â 160mm |
| Shock |
RockShox Super Deluxe Coil Select+ RT, Spring: 400 Travel:Â 150mm Spring Type:Â Coil |
| Bottom Bracket |
SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 0.17 lbs |
| Stem |
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails., Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar |
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle |
Ergon SM10 Enduro Comp, Gender: Unisex |
| Seatpost |
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL) Type:Â Dropper |
| Pedals |
None included |
| Grips |
Canyon G5 |
Groupset
| Rear Derailleur |
SRAM GX Eagle AXS, Weight: 0.75 lbs |
|---|---|
| Crank |
SRAM GX Eagle, Number of chainrings: 1 |
| Shifters |
SRAM GX Eagle AXS, Weight: 0.15 lbs |
| Cassette |
SRAM GX Eagle, 12-speed, 10-52T, Number of sprockets: 12, Range: 10-52 |
| Chain |
SRAM SX Eagle |
| Chain Guide |
Canyon GP0293-02 | Canyon EP1266-01 ISCG05 Plate |
| Brakes |
SRAM Code R | SRAM Matchmaker Clamp Type:Â Hydraulic Disc |
Wheels
| Rims |
DT Swiss EX511 370LN, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Weight: 2.18 lbs | DT Swiss EX511, Axle dimension: 12×148 mm, Rotor mount: IS 6-bolt, Weight: 2.30 lbs |
|---|---|
| Tires |
Maxxis Assegai, Width: 2.5″, Weight: 2.36 lbs | Maxxis Minion DHR II 3C MaxxTerra EXO+ 2,4×27,5″, Width: 2.4″, Weight: 2.21 lbs |
| Disc Rotors |
SRAM Centerline Rounded, Size: 200 mm, Weight: 0.42 lbs |
