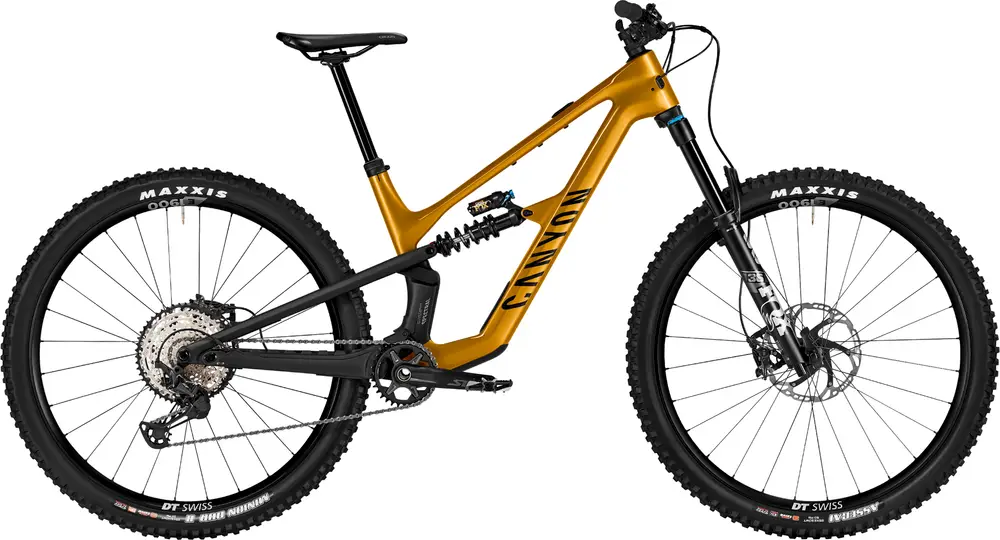

Canyon Spectral CF 8 CLLCTV 2024 Overview
Build
| Frame | Canyon Spectral CF, Full-carbon frame with optimised stiffness and compliance. Convertable wheelsize and geometry adjustment. Category 4 strength., Axle dimension: 12×148 mm, Material: Carbon (CF) BB Standard: BSA, 68mm, Threaded Color: Stadtwald Sunset |
|---|---|
| Fork | FOX 36 Performance Elite, Axle dimension: 15×110 mm, Stanchion Diameter: 36 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Volume Spacer Oe: 2/7, Weight: 5.18 lbs Travel: 150mm Spring Type: Air |
| Shock | FOX DHX Factory, Spring: 350 Travel: 140mm Spring Type: Coil |
| Bottom Bracket | Shimano BSA BB52, Bottom bracket standard: BSA HT2 68/73, Weight: 0.22 lbs |
| Stem | Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails., Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar | Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle | Ergon SM10 Enduro Comp, Gender: Unisex |
| Seatpost | Canyon SP0070-01, Air cartridge. Cable actuated., Travel: Dependent on frame size (see component geometry table.), Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 0.07 lbs Type: Dropper |
| Pedals | None included |
| Grips | Canyon G5 |
Groupset
| Rear Derailleur | Shimano Deore XT M8100, Cage length: long, Weight: 0.63 lbs |
|---|---|
| Crank | Shimano SLX M7120, Number of chainrings: 1 |
| Shifters | Shimano DEORE XT M8100, Weight: 0.29 lbs |
| Cassette | Shimano SLX M7100, Number of sprockets: 12, Range: 10-51 |
| Chain | Shimano CN-M6100 |
| Chain Guide | Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02 |
| Brakes | Shimano DEORE XT M8120, Number of pistons: 4 Type: Hydraulic Disc |
Wheels
| Rims | DT Swiss E1900, Axle dimension: 12×148 mm, Rotor mount: IS 6-bolt, Weight: 2.47 lbs | DT Swiss E1900, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Weight: 2.21 lbs |
|---|---|
| Tires | Maxxis Assegai, Width: 2.5″, Weight: 2.36 lbs | Maxxis Minion DHR II Exo+, Width: 2,4″, Weight: 2.45 lbs |
| Disc Rotors | Shimano SM-RT76, Size: 203 mm, Weight: 0.45 lbs |
