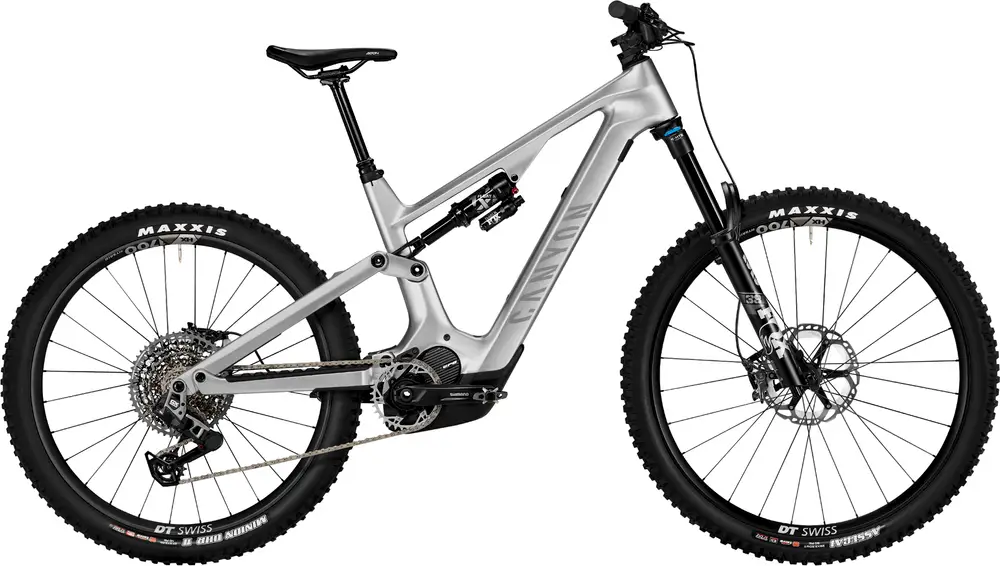

Canyon Spectral:ON CF 9 2024 Overview
Build
| Frame |
Canyon Spectral:ON CF, A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time., Material: Carbon (CF) BB Standard:Â STEPS, Press Fit Hanger Standard:Â UDH Color:Â Unlimited Silver |
|---|---|
| Fork |
FOX 38 PERFORMANCE ELITE, Travel: 160 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Weight: 4.81 lbs Travel:Â 160mm Spring Type:Â Air |
| Shock |
Fox Float X Performance Evolution, Tune: CL, RM, Rezi LM Travel:Â 155mm |
| Bottom Bracket |
STEPS, press-fit |
| Stem |
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8″, Clamping diameter: 35,0 mm |
| Handlebar |
Canyon:ON HB0057 Riser bar, Canyon-developed E-MTB handlebar for top control levels on the trail., Clamping diameter: 35,0 mm, Width: 780 mm, Rise: 30 mm |
| Saddle |
Fizik Terra Aidon X5, Gender: Unisex, Weight: 0.58 lbs |
| Seatpost |
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.28 lbs Type:Â Dropper |
| Pedals |
Iridium VP-536 |
| Grips |
Canyon Lock-On |
Groupset
| Rear Derailleur |
SRAM GX Eagle AXS Transmission, Weight: 1.02 lbs |
|---|---|
| Crank |
Shimano Steps |
| Shifters |
SRAM AXS POD Infinity |
| Cassette |
SRAM XS 1275, Number of sprockets: 12 |
| Chain |
SRAM GX Eagle Transmission |
| Chain Guide |
Canyon Chainguide M091/M129 |
| Brakes |
Shimano DEORE XT M8120 Type:Â Hydraulic Disc |
Wheels
| Rims |
DT Swiss HX1700, Rotor mount: Center Lock, Weight: 2.20 lbs | DT Swiss H1700, Rotor mount: Center Lock, Weight: 2.53 lbs |
|---|---|
| Tires |
Maxxis Assegai, Width: 2.5″, Weight: 2.25 lbs | Maxxis Minion DHR II 27,5″ x 2.60 WT, Width: 2.6″, Weight: 1.98 lbs |
| Disc Rotors |
Shimano XT STEPS rear rotor, 203mm, Size: 203 mm, Weight: 0.39 lbs | Shimano DEORE XT MT800, Size: 203 mm, Weight: 0.22 lbs |
Electric Components
| Motor |
Shimano EP801 |
|---|---|
| Battery |
SRAM Powerpack | Canyon BT0003-01 720Wh, Equipped on all Size S models and standard on Spectral:ON CF 7 and Torque:ON CF 8. | Canyon BT0004-01 900Wh, Standard battery for Sizes M-XL., 900Wh only compatible with frame sizes M-XL. |
| Charger |
Canyon BC001 |
