Build

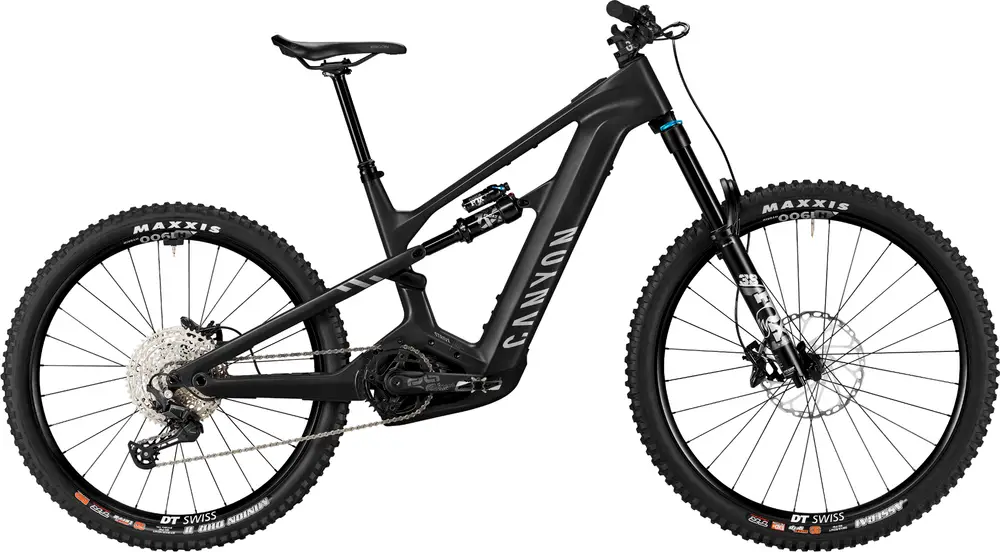

| Frame | Canyon Strive:ON, Carbon e-enduro frame engineered to compete at the highest level of pro racing, meeting our rigorous 4e testing standards. With discreetly integrated battery and motor., Axle dimension: 12×148 mm, Material: Carbon (CFR) BB Standard: Bosch, Press Fit Color: Stealth |
|---|---|
| Fork | Fox 38 Rhythm Grip, Axle dimension: 15×110 mm, Stanchion Diameter: 38 mm, Travel: 170 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Volume Spacer Oe: 1 Travel: 170mm Spring Type: Air |
| Shock | Fox Float X Evol, Tune: CL+, RM, Rezi LMB1 Travel: 160mm |
| Bottom Bracket | Bosch, press-fit |
| Stem | Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails., Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar | Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle | ERGON SM10 EMTB, Weight: 0.66 lbs |
| Seatpost | Iridium Dropper, The Iridium dropper post offers 150-200mm of on-the-fly seat height adjustability., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.32 lbs Type: Dropper |
| Pedals | Iridium VP-536 |
| Grips | Canyon G5 |
Groupset
| Rear Derailleur | Shimano Deore M6100, Cage length: long, Weight: 0.78 lbs |
|---|---|
| Crank | e*thirteen E-Spec Plus BOSCH |
| Shifters | Shimano Deore M6100, Weight: 0.30 lbs |
| Cassette | Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
| Chain | Shimano CN-M6100 |
| Chain Guide | Canyon GP0437-01 Chainguide |
| Brakes | SRAM DB8 Type: Hydraulic Disc |
Wheels
| Rims | DT Swiss H1900 Spline Hybrid 29, Rotor mount: IS 6-bolt, Weight: 2.26 lbs | DT Swiss H1900, Axle dimension: 12×148 mm, Rotor mount: IS 6-bolt, Free hub: Shimano, Hub Technology: Ratchet, standard, Inner width: 30 mm, Spokes: Straight Pull, Rim material: Aluminium, Weight: 2.47 lbs |
|---|---|
| Tires | Maxxis Minion DHR II 3C MaxxTerra, Width: 2.4″, Weight: 1.98 lbs | Maxxis Assegai 3C MaxxGrip, Width: 2,5″, Weight: 2.56 lbs |
| Disc Rotors | SRAM Centerline Rounded, Size: 200 mm, Weight: 0.42 lbs | SRAM Centerline, Size: 220 mm, Weight: 0.49 lbs |
Electric Components
| Motor | Bosch Performance Line CX |
|---|---|
| Battery | Bosch PowerTube 750Wh | Bosch PowerTube 625Wh |
| Charger | Bosch 4A |
