Build
Frame |

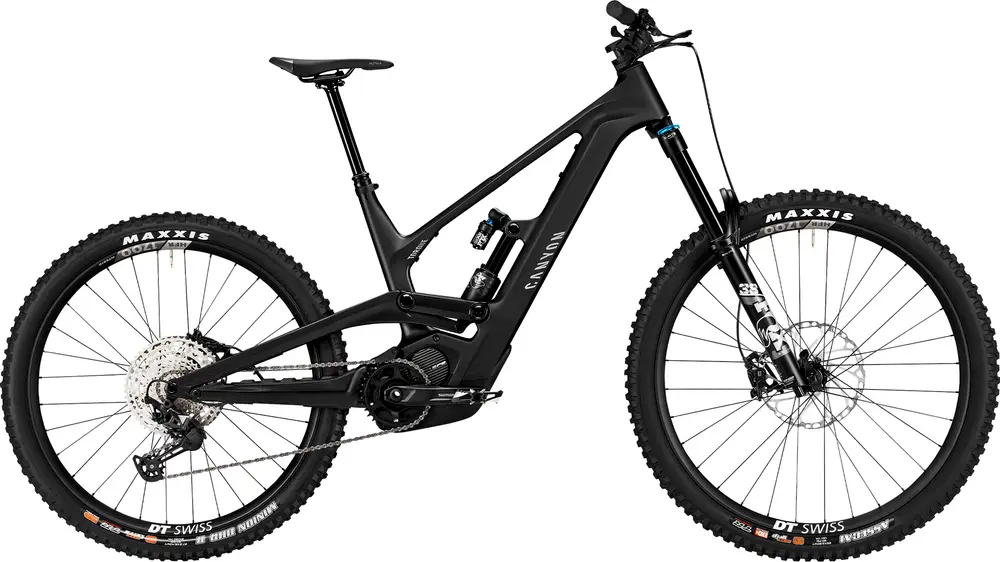

Canyon Torque:ON CF, A progressive, hugely capable carbon freeride e-MTB engineered to crush challenging trails with ease and power., Axle dimension: 12×148 mm, Material: Carbon (CF), Weight: 7.39 lbs BB Standard:Â STEPS, Press Fit Hanger Standard:Â UDH Color:Â Stealth |
---|---|
Fork |
Fox 38 Rhythm Grip, Axle dimension: 15×110 mm, Stanchion Diameter: 38 mm, Travel: 180 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Weight: 4.81 lbs Travel:Â 180mm Spring Type:Â Air |
Shock |
Fox X2 Performance Travel:Â 175mm |
Bottom Bracket |
STEPS, press-fit |
Stem |
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8″, Clamping diameter: 35,0 mm |
Handlebar |
Handlebar HB0057, Clamping diameter: 35,0 mm, Width: 800 mm, Rise: 30 mm |
Saddle |
Fizik Gravita Alpaca X5, Gender: Unisex, Weight: 0.49 lbs |
Seatpost |
Iridium Dropper, The Iridium dropper post offers 150-200mm of on-the-fly seat height adjustability., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.32 lbs Type:Â Dropper |
Pedals |
Iridium VP-536 |
Grips |
Canyon Lock-On |
Groupset
Rear Derailleur |
Shimano SLX M7100, Cage length: long, Weight: 0.63 lbs |
---|---|
Crank |
Shimano Steps |
Shifters |
Shimano SLX M7100, Weight: 0.32 lbs |
Cassette |
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
Chain |
Shimano M6100 12-speed, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly |
Chain Guide |
Canyon EP1189-01 Chain Guide Nut | Canyon GP0397-01 Chainguide | Canyon EP1539-01 Chain Guide |
Brakes |
Shimano SLX M7120, Number of pistons: 2 Type:Â Hydraulic Disc |
Wheels
Rims |
DT Swiss HFR1700, Axle dimension: 15×110 mm, Rotor mount: Center Lock, Weight: 1.97 lbs | DT Swiss HFR1700, Axle dimension: 12×148 mm, Rotor mount: Center Lock, Weight: 2.50 lbs |
---|---|
Tires |
Maxxis Minion DHR II 3C MaxxTerra, Width: 2.4″, Weight: 1.98 lbs | Maxxis Assegai 3C MaxxGrip, Width: 2,5″, Weight: 2.56 lbs |
Disc Rotors |
Shimano EM600 STEPS rear rotor, 203mm, Size: 203 mm, Weight: 0.45 lbs | Shimano Center Lock Bremsscheibe 220mm SM-RT64, Size: 220 mm, Weight: 0.42 lbs |
Electric Components
Motor |
Shimano EP801 |
---|---|
Battery |
Canyon BT0004-01 900Wh, Standard battery for Sizes M-XL., 900Wh only compatible with frame sizes M-XL. |
Display |
Shimano SC-E7000 |
Charger |
Canyon BC001 |
