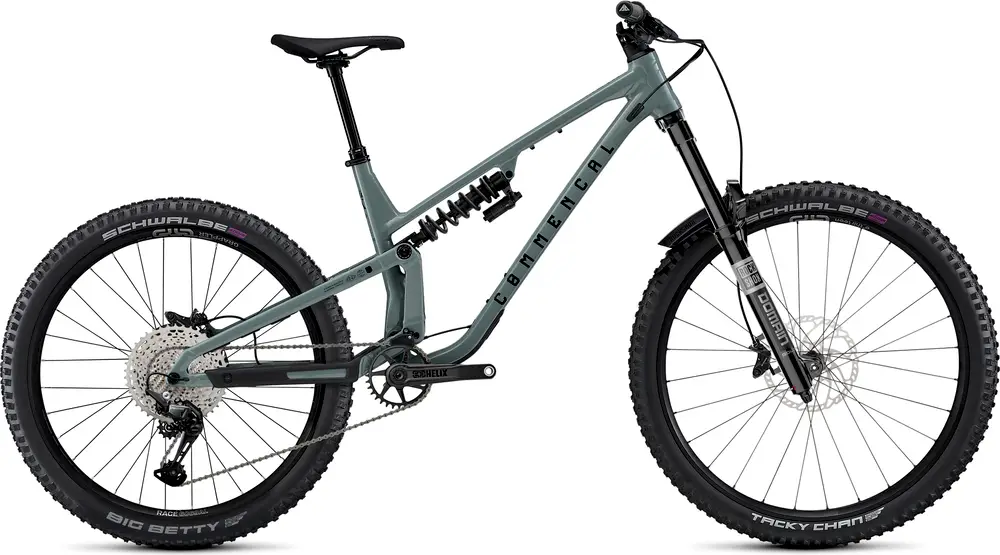

Commencal META SX V5 RIDE 2024 Overview
Build
| Frame | META SX, 165 mm travel, 29”-27.5”, Alloy 6066, triple butted tubes, T4, T6. Bolu bearings BB Standard: BB86/BB92, Press Fit Color: Pyrite Grey, Shiny Finish |
|---|---|
| Fork | ROCKSHOX Domain Gold R, 170 mm travel, 29″, Isolator R damper, DebonAir, rebound, Boost (15 x 110 mm), 44 mm offset, 1 Token Travel: 170mm Spring Type: Air |
| Shock | ROCKSHOX Super Deluxe Coil Select, 230 x 65 mm, R damper, rebound. Spring rates: 350 lbs on S, 400 lbs on M, 450 lbs on L, 500 lbs on XL Travel: 165mm Spring Type: Coil |
| Bottom Bracket | Press Fit BB 92 |
| Headset | ACROS ZS56 / ZS56, Alloy cups, sealed bearings |
| Stem | RIDE ALPHA 40, 40 mm extension, 31.8 mm |
| Handlebar | RIDE ALPHA R20 760 on S, RIDE ALPHA R27 780 on M / L, RIDE ALPHA R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L, 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL |
| Saddle | FIZIK Terra Alpaca, 145 mm width, Steel rails |
| Seatpost | KS Rage-I, 34.9 mm, travel: 125 mm on S, 170 mm on M and 190 mm on L/XL, SouthPaw alloy remote Type: Dropper |
| Grips | RIDE ALPHA Mushroom, Soft compound, single clamp, black |
Groupset
| Rear Derailleur | SHIMANO Deore, 12s |
|---|---|
| Crank | E13 Helix Core, 165 mm crank arms, Chainring: E13 Helix Core, 32t |
| Shifters | SHIMANO Deore, 12s |
| Cassette | SHIMANO Deore, 12s, 10-51t |
| Chain | SHIMANO Deore, 12s |
| Chain Guide | RIDE ALPHA, 32t-34t |
| Brakes | SHIMANO Deore, 4 pistons, resin pads, Rotors: SHIMANO SM-RT66 203 mm, 6-bolt Type: Hydraulic Disc |
Wheels
| Rims | E13 Grappler Core DH, Rear: 27.5”, 32h, 30 mm inner width – Front: 29”, 32h, 30 mm inner width |
|---|---|
| Front Hub | Rear: FORMULA MSL-148A – Front: FORMULA DC-711, Rear: 32h, sealed bearings, 12 x 148 mm, Microspline freehub body – Front: 32h, sealed bearings, 15 x 110 mm |
| Rear Hub | Rear: FORMULA MSL-148A – Front: FORMULA DC-711, Rear: 32h, sealed bearings, 12 x 148 mm, Microspline freehub body – Front: 32h, sealed bearings, 15 x 110 mm |
| Tires | Rear: SCHWALBE Big Betty – Front: SCHWALBE Magic Mary, Rear: 27.5″x2.4″, Double Down, Addix, Tubeless Easy – Front: 29″x2.4″, Double Down, Addix, Tubeless Easy |
