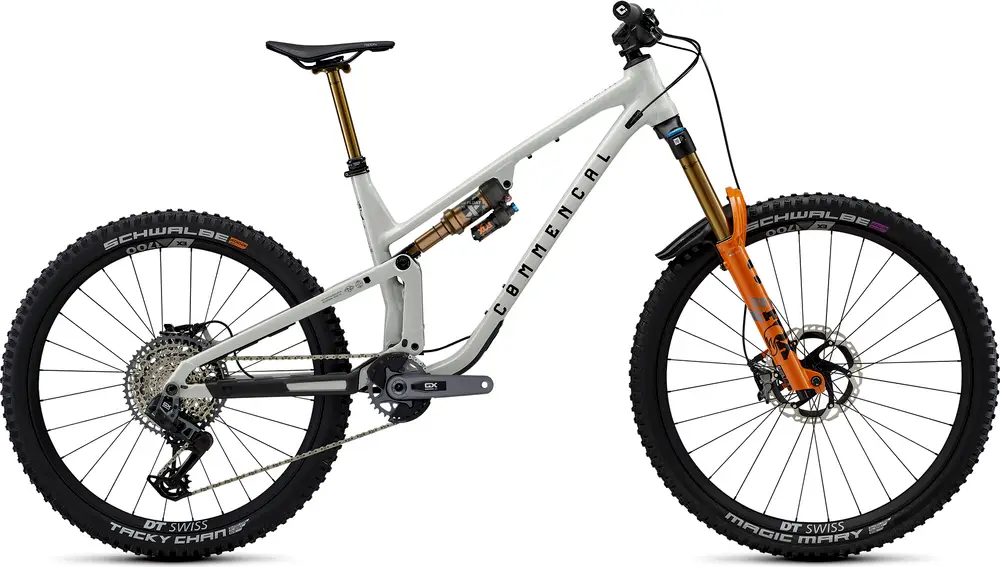

Commencal META SX V5 SIGNATURE 2024 Overview
Build
| Frame |
META SX, 165 mm travel, 29”-27.5”, Alloy 6066, triple butted tubes, T4, T6. Bolu bearings BB Standard:Â BB86/BB92, Press Fit Color:Â Clear Silver, Shiny Finish |
|---|---|
| Fork |
FOX 38 Factory, 170 mm travel, 29″, Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 2 Tokens Travel:Â 170mm Spring Type:Â Air |
| Shock |
FOX Float X Factory, 230 x 65 mm, HSC, LSC, HSR, LSR, 2-postion adjustment Travel:Â 165mm |
| Bottom Bracket |
Press Fit BB 92 |
| Headset |
ACROS ZS56 / ZS56, Alloy cups, sealed bearings |
| Stem |
RIDE ALPHA 40, 40 mm extension, 31.8 mm |
| Handlebar |
RIDE ALPHA R20 760 on S, RIDE ALPHA R27 780 on M / L, RIDE ALPHA R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L, 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL |
| Saddle |
FIZIK Terra Ridon X5, 145 mm width, S-alloy Mobius rails |
| Seatpost |
FOX Transfer Factory, 31.6 mm, travel: 125 mm on S, 175 mm on M and 200 mm on L/XL, 1x lever + seat tube adaptor to 34.9 mm Type:Â Dropper |
| Grips |
ODI Longneck, Soft compound, single clamp, black |
Groupset
| Rear Derailleur |
SRAM GX Eagle, 12s |
|---|---|
| Crank |
SRAM GX T-Type, 165 mm crank arms, Boost, Chainring: SRAM GX T-Type, 32t, guard |
| Shifters |
SRAM GX Eagle, 12s |
| Cassette |
SRAM XG 1275, 12s, 10-52t |
| Chain |
SRAM GX Eagle, 12s |
| Chain Guide |
RIDE ALPHA, 32t-34t |
| Brakes |
SHIMANO XT, 4 pistons, resin pads, Rotors: SHIMANO RT-MT905 203 mm, 6-bolt, Ice Technology Freeza Type:Â Hydraulic Disc |
Wheels
| Rims |
DT SWISS EX 1700, Rear: 27.5”, 28h, 30 mm inner width – Front: 29”, 28h, 30 mm inner width |
|---|---|
| Front Hub |
DT SWISS 350, Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 54t ratchet, black – Front: 28h, sealed bearings, 15 x 110 mm, black |
| Rear Hub |
DT SWISS 350, Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 54t ratchet, black – Front: 28h, sealed bearings, 15 x 110 mm, black |
| Tires |
Rear: SCHWALBE Tacky Chan – Front: SCHWALBE Magic Mary, Rear: 27.5″x2.4″, Super Trail, Addix Soft, Tubeless Easy – Front: 29″x2.4″, Super Trail, Addix Ultra Soft, Tubeless Easy |
