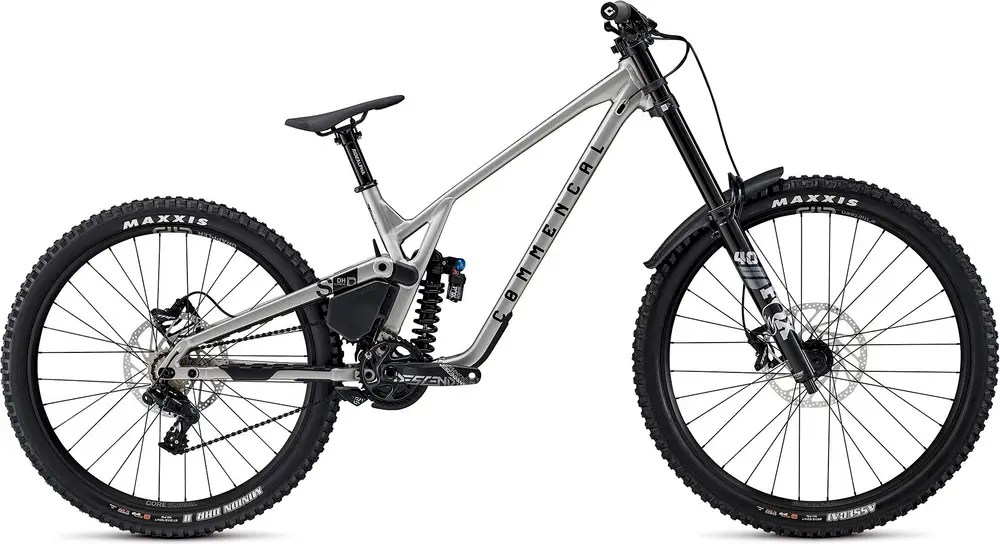

Commencal SUPREME DH V5 ESSENTIAL 2024 Overview
Build
| Frame | SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL, 27/29”, Alloy 6066, triple butted tubes, T4, T6 BB Standard: BB86/BB92, 107mm, Press Fit Color: Silver, Matte Finish |
|---|---|
| Fork | FOX 40 Performance, 203 mm travel, 29″, Grip damper, LSC, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 spacers Travel: 203mm Spring Type: Air |
| Shock | FOX DHX 2 Performance Elite, 250 x 75 mm, LSC, LSR. Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 500 lbs on XL Travel: 220mm Spring Type: Coil |
| Bottom Bracket | Press Fit BB 107 |
| Headset | ACROS ZS56 / ZS56, Alloy cups, sealed bearings |
| Stem | RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm |
| Handlebar | RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L – 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL |
| Saddle | FIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails |
| Seatpost | RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075 Type: Rigid |
| Grips | ODI Longneck, Soft pro compound, single clamp, black |
Groupset
| Rear Derailleur | SRAM GX DH, 7 sp |
|---|---|
| Crank | TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t |
| Shifters | SRAM GX DH, 7 sp |
| Cassette | E13 DH 7 Speed Integrated Cassette, 7 sp, 9-24t |
| Chain | KMC X11EL, Black |
| Chain Guide | E13 LG1 + Bottom Guide, 32-34t |
| Brakes | TRP DH-R Evo, 4 pistons, resin pads, Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm width Type: Hydraulic Disc |
Wheels
| Rims | E13 Grappler Core Alloy DH, Rear: 27.5”, 32h, 30 mm inner width – Front: 29”, 32h, 30 mm inner width |
|---|---|
| Front Hub | Rear: E13 LG1 Plus DH – Front: E13 LG1 Plus DH, Rear : E13 Grappler Core Alloy DH – Front : E13 Grappler Core Alloy DH |
| Rear Hub | Rear: E13 LG1 Plus DH – Front: E13 LG1 Plus DH, Rear : E13 Grappler Core Alloy DH – Front : E13 Grappler Core Alloy DH |
| Tires | Rear: MAXXIS DHR II – Front: MAXXIS Assegai, Rear: 27.5” x 2.4”, WT, 3C MaxxGrip, DH casing, Tubeless Ready – Front: 29″ x 2.5″ WT, 3C MaxxGrip, DH casing, Tubeless Ready |
