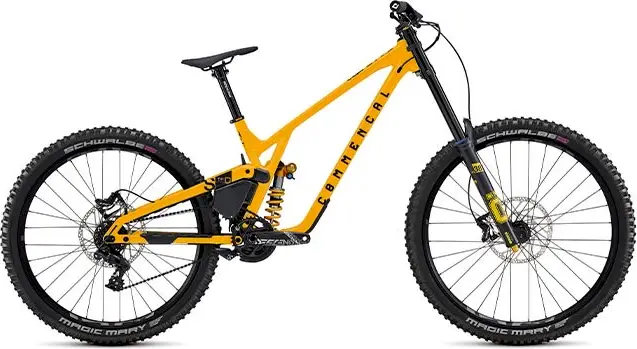

2023 Commencal SUPREME DH V5 OHLINS EDITION OHLINS A 27.5″ aluminum frame full suspension downhill bike with high-end components.
Build
| Frame | Supreme DH V5 29/27, 200 mm travel on S / M / L / XL, 27/29”, Alloy 6066, triple butted tubes, T4, T6. Enduro bearings Color: Ohlins Yellow, Matte Finish |
|---|---|
| Fork | OHLINS DH38 Air, 200 mm travel, 29″, TTX 18 damper, Ramp Up chamber, LSC, HSC, LSR, Boost (20 x 110 mm), 54 mm offset |
| Rear Shock | OHLINS TTX22M, 250 x 75 mm, HSC, LSC, rebound. Spring rates: 388 lbs on S, 434 lbs on M, 457 lbs on L, 502 lbs on XL |
| Bottom Bracket | SRAM DUB, Pressfit |
| Headset | ACROS ZS56 / ZS56, Alloy cups, sealed bearings |
| Stem | RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm |
| Handlebar | RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L – 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL |
| Saddle | FIZIK Gravita Alpaca X5, MG rails, flexible “wings” |
| Seatpost | RIDE ALPHA Super Light, 31.6 mm, 250 mm length |
| Grips | ODI Longneck, Soft pro compound, single clamp, black |
Groupset
| Rear Derailleur | SRAM GX DH, 7 sp |
|---|---|
| Crank | TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t |
| Shifters | SRAM GX DH, 7 sp |
| Cassette | E13 LG1 Plus DH, 7s, 9-24t DM Cassette |
| Chain | KMC X11EL, Black |
| Chain Guide | E13 LG1 + Bottom Guide, 32-34t |
| Brakes | TRP DH-R EVO, 4 pistons, Rotor: TRP R1 223 mm, 6-bolt |
Wheels
| Rims | E13 LG1 Plus DH, REAR: 27.5”, 32h, 30 mm inner width rear on S / M / L / XL – FRONT: 29”, 32h, 30 mm inner width front on S / M / L / XL |
|---|---|
| Front Hub | Rear: E13 LG1 Plus DH – Front: E13 LG1 Plus DH, Rear: 32h, sealed bearings, 12 x 150 mm, black – Front: 32h, sealed bearings, 20 x 110 mm Boost, black |
| Rear Hub | Rear: E13 LG1 Plus DH – Front: E13 LG1 Plus DH, Rear: 32h, sealed bearings, 12 x 150 mm, black – Front: 32h, sealed bearings, 20 x 110 mm Boost, black |
| Tires | Rear: SCHWALBE Magic Mary – Front: SCHWALBE Magic Mary, REAR: 27.5” x 2.4”, Super DH, Addix Ultra Soft on S / M / L / XL, Tubeless Easy – FRONT: 29″ x 2.4″, Super DH, Addix Ultra Soft on S / M / L / XL, Tubeless Easy |
