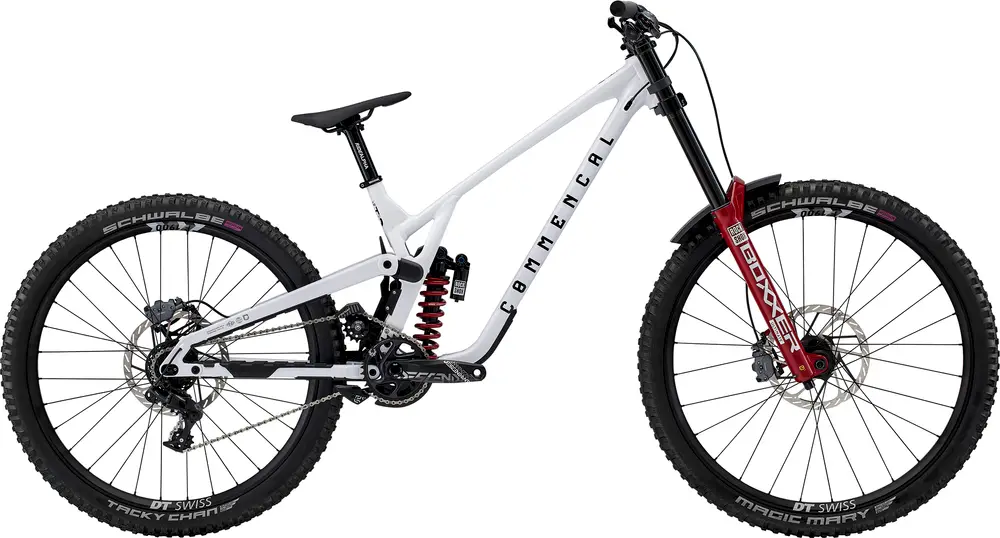

Commencal SUPREME DH V5 ROCKSHOX 2024 Overview
Build
| Frame |
SUPREME DH V5 29/27, 220 mm travel, 27/29”, Alloy 6066, triple butted tubes, T4, T6. BB Standard:Â BB86/BB92, 107mm, Press Fit Color:Â Pure White, Shiny Finish |
|---|---|
| Fork |
ROCKSHOX Boxxer Ultimate, 203 mm travel, 29”, Charger 3 damper, HSC, LSC, HSR, LSR, Boost (20 x 110 mm), 52 mm offset, Electric Tall Travel:Â 203mm Spring Type:Â Air |
| Shock |
ROCKSHOX Vivid Coil Ultimate DH, 250 x 75 mm, HSC, LSC, LSR, rebound, Red Coil Travel:Â 220mm |
| Bottom Bracket |
Press Fit BB 107 |
| Headset |
ACROS ZS56/ZS56, Alloy cups, sealed bearings |
| Stem |
RIDE ALPHA DH, 40 mm extension, 31.8 mm |
| Handlebar |
RIDE ALPHA, 31.8 mm, 780 mm on S/M/L, 800 mm on XL, rise 27 |
| Saddle |
FIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails, Team edition |
| Seatpost |
RIDE ALPHA, 31.6 mm, 250 mm Type:Â Rigid |
| Grips |
RIDE ALPHA Mushroom, 132 mm, single clamp, black |
Groupset
| Rear Derailleur |
SRAM GX Eagle, 7s |
|---|---|
| Crank |
SRAM Descendant DH, 165 mm crank arms, DUB, Chainring: SRAM Descendant DH, 34t |
| Shifters |
SRAM GX DH, 7s |
| Cassette |
SRAM PG-720 DH, 7s, 11-25t |
| Chain |
SRAM PC-1130, 11s |
| Chain Guide |
E13 LG1, 32-34t |
| Brakes |
SRAM Maven Bronze, 4 pistons, sintered pads, Rotors: SRAM HS2 220 mm, 6-bolts, 2.0 mm width Type:Â Hydraulic Disc |
Wheels
| Rims |
DT SWISS F1900 Classic, Rear: 27.5”, 32h, 30 mm inner width, 12 x 157 mm – Front: 29”, 32h, 30 mm inner width, 20 x 110 mm |
|---|---|
| Front Hub |
Included with wheelset |
| Rear Hub |
Included with wheelset |
| Tires |
Rear: SCHWALBE Tacky Chan – Front: SCHWALBE Magic Mary, Rear: 27.5”x2.4”, Super DH, Addix Ultra Soft, Tubeless Easy – Front: 29”x2.4″, Super DH, Addix Ultra Soft, Tubeless Easy |
