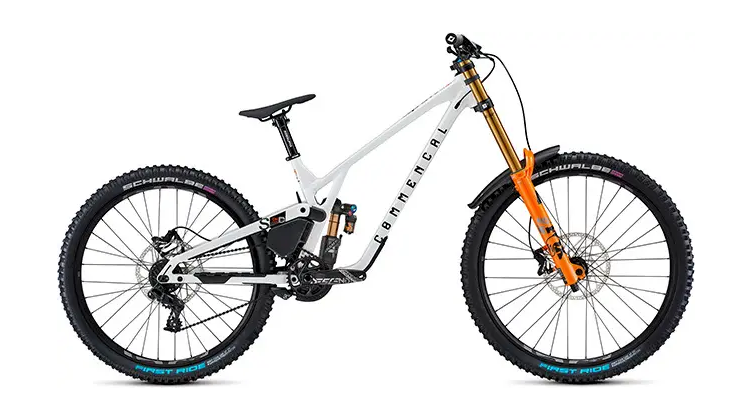

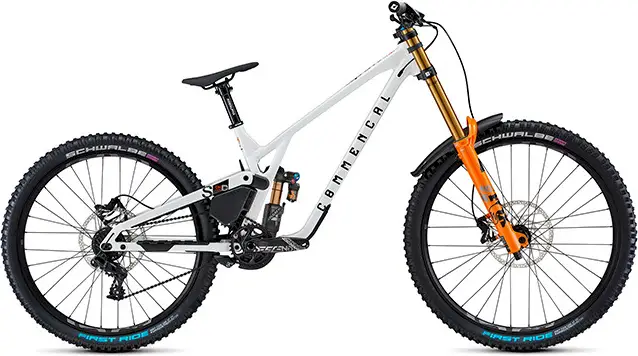

2023 Commencal SUPREME DH V5 SIGNATURE AIR A 27.5″ aluminum frame full suspension downhill bike with high-end components.
Build
| Frame | Supreme DH V5 29/27, 220 mm travel on S / M / L / XL, 29”, Alloy 6066, triple butted tubes, T4, T6. Enduro bearings Color: Pure White, Shiny Finish |
|---|---|
| Fork | FOX 40 Factory, 203 mm travel, 29″, Fit Grip2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 Tokens |
| Rear Shock | FOX FLOAT X2 Factory, 250 x 75 mm, HSC, LSC, HSR, LSR, rebound |
| Bottom Bracket | SRAM DUB, Pressfit |
| Headset | ACROS ZS56 / ZS56, Alloy cups, sealed bearings |
| Stem | RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm |
| Handlebar | RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L – 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL |
| Saddle | FIZIK Gravita Alpaca X5, MG rails, flexible “wings” |
| Seatpost | RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075 |
| Grips | ODI Longneck, Soft pro compound, single clamp, black |
Groupset
| Rear Derailleur | SRAM GX DH, 7 sp |
|---|---|
| Crank | TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t |
| Shifters | SRAM GX DH, 7 sp |
| Cassette | E13 LG1 Plus DH, 7 sp, 9-24t |
| Chain | KMC X11EL, Black |
| Chain Guide | E13 LG1 + Bottom Guide, 32-34t |
| Brakes | TRP DH-R Evo, 4 pistons, resin pads, Rotor: TRP R1 223 mm, 6-bolt, 2.3 mm width |
Wheels
| Rims | E13 LG1 Plus DH, REAR: 27.5”, 32h, 30mm inner width on S / M / L / XL – FRONT: 29”, 32h, 30mm inner width on S / M / L / XL |
|---|---|
| Front Hub | Rear: E13 LG1 Plus DH – Front: E13 LG1 Plus DH, Rear: 32h, sealed bearings, 12x157mm, black – Front: 32h, sealed bearings, 20x110mm Boost, black |
| Rear Hub | Rear: E13 LG1 Plus DH – Front: E13 LG1 Plus DH, Rear: 32h, sealed bearings, 12x157mm, black – Front: 32h, sealed bearings, 20x110mm Boost, black |
| Tires | Rear: SCHWALBE First Ride – Front: SCHWALBE First Ride, REAR: 27.5”x2.4”, Super DH, Addix Ultra Soft on S / M / L / XL, Tubeless Easy – FRONT: 29″x2.4″, Super DH, Addix Ultra Soft on S / M / L / XL, Tubeless Easy |
