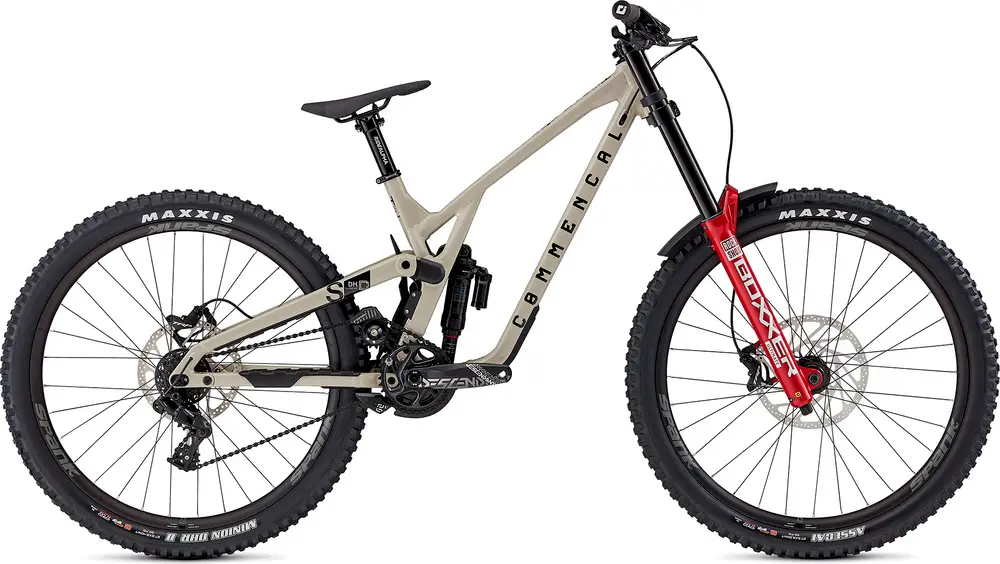

Commencal SUPREME DH V5 XS NEW ROCKSHOX 2024 Overview
Build
| Frame | SUPREME DH V5 27”, 220 mm travel, 27.5”, Alloy 6066, triple butted tubes, T4, T6. Enduro bearings BB Standard: BB86/BB92, 107mm, Press Fit Color: Chalk, Shiny Finish |
|---|---|
| Fork | ROCKSHOX Boxxer Ultimate, 200 mm travel, 27.5″, Charger 3 RC2 damper W/ButterCups, DebonAir+ W/ButterCups, HSC, LSC, rebound, Boost (20 x 110 mm), 48 mm offset, 0 Token Travel: 200mm Spring Type: Air |
| Shock | ROCKSHOX SuperDeluxe Select R, 250 x 75 mm, R damper, DebonAir, rebound, 0 Token neg. 1 Token pos. Travel: 220mm |
| Bottom Bracket | Press Fit BB 107 |
| Headset | ACROS ZS56 / ZS56, Alloy cups, sealed bearings |
| Stem | RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm |
| Handlebar | RIDE ALPHA R20, 31.8 mm, 740 mm width, 20 mm rise, Alloy 6061 |
| Saddle | FIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails |
| Seatpost | RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075 Type: Rigid |
| Grips | ODI Elite Motion, Soft pro compound, single clamp, black |
Groupset
| Rear Derailleur | SRAM GX DH, 7 sp |
|---|---|
| Crank | TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t |
| Shifters | SRAM PG-720, 7 sp |
| Cassette | SRAM GX DH, 7 sp, 11-25t |
| Chain | KMC X11EL, Black |
| Chain Guide | E13 LG1 + Bottom Guide, 32-34t |
| Brakes | TRP DH-R Evo, 4 pistons, resin pads, Rotors: TRP R1 223/203 mm, 6-bolt, 2.3 mm width Type: Hydraulic Disc |
Wheels
| Rims | SPANK Spike Race 33, 27.5”, 32h, 28 mm inner width, tubeless ready |
|---|---|
| Front Hub | Rear: FORMULA DHG-157 – Front: FORMULA DHL-93, Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide – Front: 32h, sealed bearings, 20 x 110 mm Boost, black |
| Rear Hub | Rear: FORMULA DHG-157 – Front: FORMULA DHL-93, Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide – Front: 32h, sealed bearings, 20 x 110 mm Boost, black |
| Tires | Rear: MAXXIS DHR II – Front: MAXXIS Assegai, REAR: 27.5″ x 2.4″, WT, 3C MaxxTerra, Double Down, Tubeless Ready – FRONT: 27.5″ x 2.5″, WT, 3C MaxxGrip, Double Down, Tubeless Ready |
