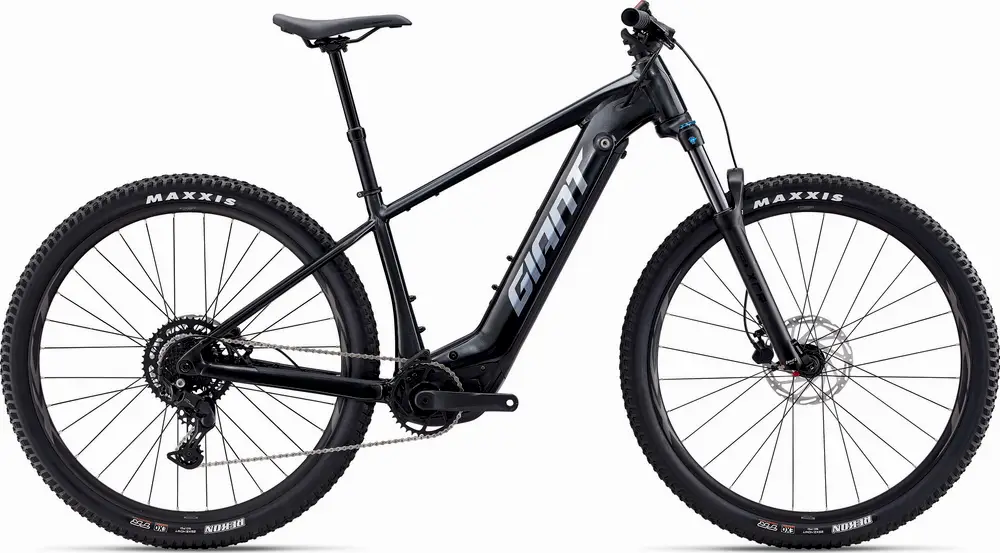

Giant Fathom E+ 2 2024 Overview
Build
| Frame | ALUXX-grade aluminum, 1.8″ – 1.125″ head tube, 148x12mm thru-axle, integrated KSA40 kickstand mount Color: Gunmetal Black |
|---|---|
| Fork | SR Suntour XCR 34 Boost 2-CR Coil 29, 130mm travel, Tapered 1.125″-1.5″ steerer, 15AH2-110 thru-axle Travel: 130mm Spring Type: Coil |
| Stem | Giant Contact |
| Handlebar | Giant Connect TR Riser 31.8x750mm [S], 780mm [M-XXL] |
| Saddle | Giant Ergo Contact Trail |
| Seatpost | Giant Contact Switch Adj, adjustable dropper, 30,9mm Type: Dropper |
| Pedals | platform |
| Grips | Giant Tactal Pro, single lock-on |
Groupset
| Rear Derailleur | Shimano CUES LinkGlide, 9-speed |
|---|---|
| Crank | FSA Comet E-Bike crank arm set, FSA MegaTooth Direct-mount 1X steel 36t, chainline: 52mm, max chainring: 38t |
| Shifters | Shimano CUES LinkGlide |
| Cassette | Shimano CUES, LinkGlide, CS-LG300, 9-speed, 11×46 |
| Chain | KMC eGlide NP/BK, e-bike optimized |
| Brakes | Tektro HD-M285, hydraulic, [F] 180mm, [R] 180mm Type: Hydraulic Disc |
| Brake Levers | Tektro HD-M285 |
Wheels
| Rims | Giant XCT 29 Tubeless Ready 25mm e-bike optimized |
|---|---|
| Spokes | stainless |
| Front Hub | Giant eTracker Boost 15×110 [F] 12×148 [R] |
| Rear Hub | Giant eTracker Boost 15×110 [F] 12×148 [R] |
| Tires | Maxxis Rekon 29×2.4″ Wire Bead 60TPI |
Electric Components
| Motor | SyncDrive Sport2, 75Nm, powered by Yamaha |
|---|---|
| Battery | EnergyPak 625Wh, alloy casing with highest safety standard (EN50604), CO2 neutral production, EnergyPak Plus 250Wh range extender compatible Recycling Program: Call2Recycle |
| Remote | RideControl Dash, full color LCD screen, 5 power levels plus auto mode |
| Display | RideControl Dash, full color LCD screen |
| Charger | Giant EnergyPak 4A smart charger compact, 60% charge in 2:30h |
Accessories
| Racks | – |
|---|
