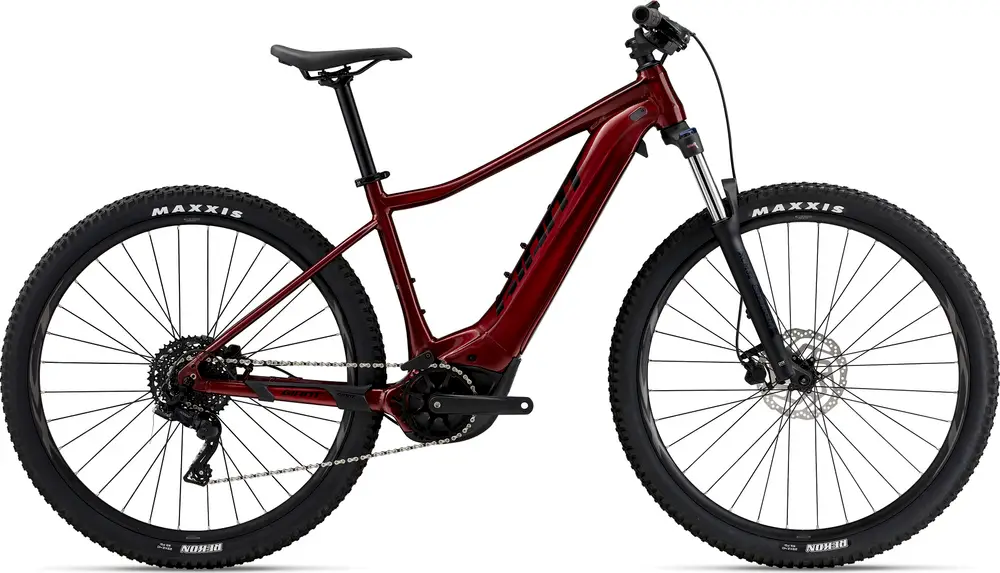

Giant Fathom E+ 3 2024 Overview
Build
| Frame |
ALUXX aluminum, Overdrive 1 – 1″ head tube, 141mm Boost QR, ISS, EnergyPak Plus Range Extender compatible, integrated KSA18 kickstand mount Color:Â Sangria |
|---|---|
| Fork |
SR Suntour XCM32 NLO DS 15AH2 29, 120mm travel, tapered steerer, lockout Travel:Â 120mm Spring Type:Â Coil |
| Stem |
Giant Contact 31.8 alloy |
| Handlebar |
Giant Connect TR Riser 31.8 alloy 750mm [S], 780mm [ M-XXL] |
| Saddle |
Giant Sport |
| Seatpost |
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium Type:Â Rigid |
| Pedals |
Aluminum Platform |
| Grips |
Giant Tactal single lock-on |
Groupset
| Rear Derailleur |
microSHIFT ADVENT, 9-speed |
|---|---|
| Crank |
FSA MegaTooth direct-mount 1X steel 36T alloy crank arm |
| Shifters |
microSHIFT ADVENT e-optimized |
| Cassette |
microSHIFT ADVENT, 11-42T, 9-speed, e-optimized |
| Chain |
KMC e.9 Sport, e-bike optimized |
| Brakes |
Tektro HD-M285, hydraulic disc, 180mm Type:Â Hydraulic Disc |
| Brake Levers |
Tektro HD-M285 |
Wheels
| Rims |
Giant XCT 29 Tubeless Ready 25mm e-bike optimized |
|---|---|
| Spokes |
Stainless steel |
| Front Hub |
Shimano HB-TC500-15 100×15 [F], MT200-B 141mm OLD QR [R] |
| Rear Hub |
Shimano HB-TC500-15 100×15 [F], MT200-B 141mm OLD QR [R] |
| Tires |
Maxxis Rekon 29×2.4″ Wire Bead 60TPI |
Electric Components
| Motor |
Giant SyncDrive Sport, 70Nm, PedalPlus 6-sensor technology |
|---|---|
| Battery |
Giant EnergyPak 500Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible Recycling Program:Â Â Call2Recycle |
| Display |
Giant RideControl Dash, high-angle visibility, full color LCD display |
| Charger |
Giant EnergyPak 4A smart charger compact, 60% charge in 2:00h |
