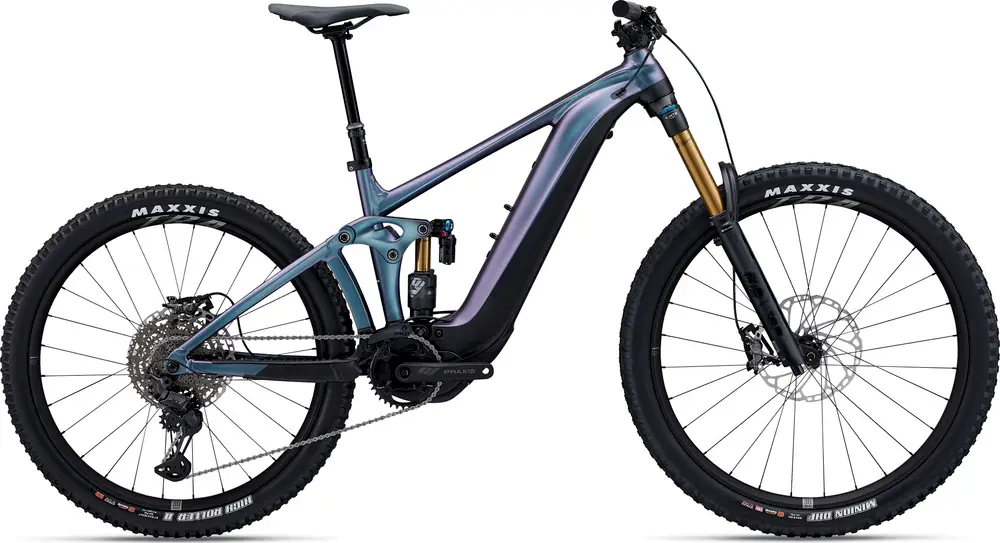

Giant Reign E+ 1 2024 Overview
Build
| Frame |
ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, ‘Boost’ 148x12mm, Universal Derailleur Hanger Hanger Standard:Â UDH Color:Â Blue Dragonfly |
|---|---|
| Fork |
Fox 38 Float Factory GRIP 2 Air 170 matt black 1111-38FLOA-0024 Travel:Â 170mm Spring Type:Â Air |
| Shock |
Fox X2 Factory, EVOL Large Volume sleeve, 205×62.5mm Trunnion mount, custom tuned, recommended sag: 30% Travel:Â 160mm |
| Bottom Bracket |
n/a |
| Stem |
Giant Contact SL 35 |
| Handlebar |
Giant Contact Trail, 35x800mm |
| Saddle |
Romero |
| Seatpost |
Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) Type:Â Dropper |
| Pedals |
Flat pedal |
| Grips |
Giant Tactal Pro-E, tapered design, 135mm 28~30mm (S/M) 142mm 29~32mm (L/XL) |
Groupset
| Rear Derailleur |
Shimano XT LinkGlide 11-speed, Shadow+ |
|---|---|
| Front Derailleur |
MRP HD2 co-moulded chain guide |
| Crank |
Praxis E- Crankset 36T steel chainring 160mm [S-M], 165mm [L-XL] |
| Shifters |
Shimano XT LinkGllide |
| Cassette |
Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed |
| Chain |
Shimano LinkGlide, CN-LG500 |
| Brakes |
Shimano XT, BR-8120, 4-piston, hydraulic disc, RT66, 220mm Type:Â Hydraulic Disc |
| Brake Levers |
Shimano XT, I-spec EV |
Wheels
| Rims |
E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R], 30mm inner width |
|---|---|
| Spokes |
Sapim E-Lite [R] Race [F], e-bike optimized |
| Front Hub |
E-TRA MTB Alloy Hub, 6 Bolt, 110×15 [F] / 148×12 Shimano HG Drive Body Pawl Driver (3 Pawl 30T) Thru-axle [R] |
| Rear Hub |
E-TRA MTB Alloy Hub, 6 Bolt, 110×15 [F] / 148×12 Shimano HG Drive Body Pawl Driver (3 Pawl 30T) Thru-axle [R] |
| Tires |
Maxxis Minion DHF 29×2.6″” foldable, Tubeless, EXO+, 3C MaxxTerra[F] Maxxis High Roller II 27.5×2.5″” foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
Electric Components
| Motor |
Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology, Class 1, Max Assist Speed 20 MPH |
|---|---|
| Battery |
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible (exculde S size) Recycling Program:Â Â Call2Recycle |
| Remote |
Giant RideControl Ergo3, grip integrated remote |
| Display |
Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display |
| Charger |
Giant EnergyPak 6A smart charger, 60% in 2:15h |
Accessories
| Lock |
Torx 25 Battery Lock with built-in Torque limiter |
|---|
