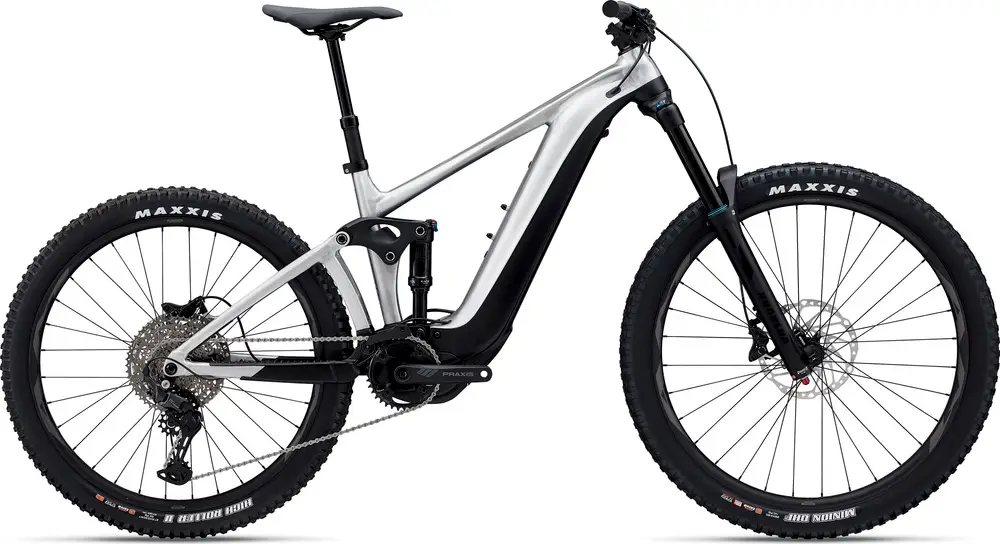

Giant Reign E+ 3 2024 Overview
Build
| Frame |
ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, ‘Boost’ 148x12mm, Universal Derailleur Hanger Hanger Standard:Â UDH Color:Â Raw Aluminum |
|---|---|
| Fork |
SR Suntour Durolux 38 Boost EQ, 170mm travel, 44mm offset, RC2, 15LH-110 Travel:Â 170mm Spring Type:Â Air |
| Shock |
Fox Float Performance, EVOL Large Volume sleeve, 2-position lever, 205×62.5mm Trunnion mount, custom tuned, recommended sag: 30% Travel:Â 160mm |
| Bottom Bracket |
n/a |
| Stem |
Giant Contact SL 35 |
| Handlebar |
Giant Contact Trail, 35x800mm |
| Saddle |
Giant Romero Trail |
| Seatpost |
Giant Contact Switch, dropper, 30,9mm (S:125/M:150/L:170/XL:200) Type:Â Dropper |
| Pedals |
Flatpedal |
| Grips |
Giant Tactal Pro-E, tapered design, 135mm 28~30mm (S/M) 142mm 29~32mm (L/XL) |
Groupset
| Rear Derailleur |
Shimano Cues LinkGlide 11-speed |
|---|---|
| Front Derailleur |
MRP 1X HD2 custom co-molded chain guide |
| Crank |
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set (S/M:160mm, L/XL:165mm) |
| Shifters |
Shimano Cues LinkGlide |
| Cassette |
Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed |
| Chain |
Shimano LinkGlide, CN-LG500 |
| Brakes |
Shimano BR-MT420, 4-piston, hydraulic disc, 203mm Type:Â Hydraulic Disc |
| Brake Levers |
Shimano Deore, I-spec EV |
Wheels
| Rims |
Giant AM30, Tubeless ready, 30mm inner width, 29″ [F] / 27.5″ [R] |
|---|---|
| Spokes |
Sapim E-Lite [R] Race [F], e-bike optimized |
| Front Hub |
Shimano MT410, Boost, Center-Lock, [F] 110×15 [R] 148x12mm HG Drive Body Thru-axle |
| Rear Hub |
Shimano MT410, Boost, Center-Lock, [F] 110×15 [R] 148x12mm HG Drive Body Thru-axle |
| Tires |
Maxxis Minion DHF 29×2.6″” foldable, Tubeless, EXO+, 3C MaxxTerra[F] Maxxis High Roller II 27.5×2.5″” foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
Electric Components
| Motor |
Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology |
|---|---|
| Battery |
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible (exculde S size) Recycling Program:Â Â Call2Recycle |
| Remote |
Giant RideControl Ergo3, grip integrated remote |
| Display |
Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display |
| Charger |
Giant EnergyPak 6A smart charger, 60% in 2:15h |
Accessories
| Lock |
Torx 25 Battery Lock with built-in Torque limiter |
|---|
