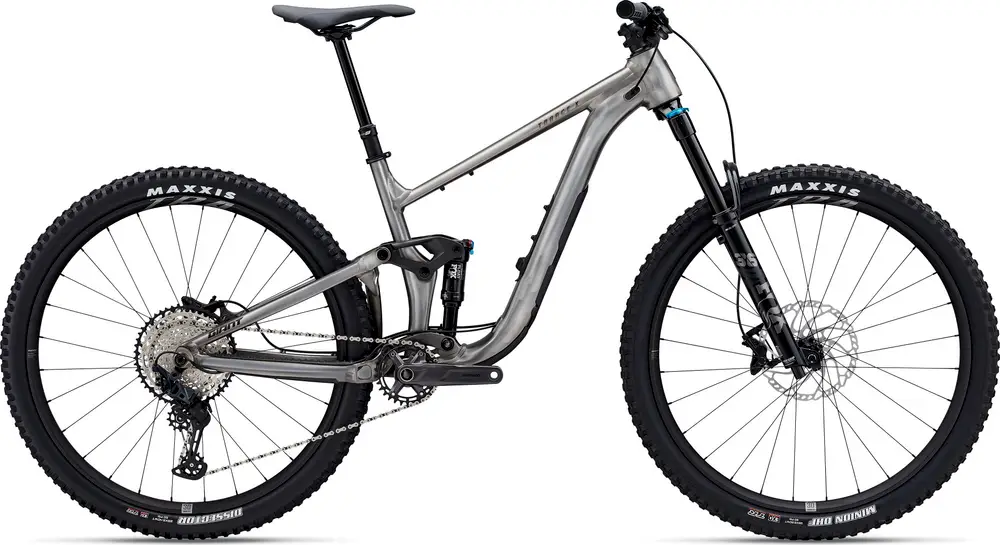

Giant Trance X 1 2024 Overview
Build
| Frame |
ALUXX SL-Grade Aluminum front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip – Maestro 3, flip chip – headset, integrated down tube storage and under-top tube storage mounts BB Standard:Â BB86/BB92, Press Fit Tire Clearance:Â 2.5″ Color:Â Smoke Metal |
|---|---|
| Fork |
Fox 36 Float Performance, 150mm, GRIP damper, 15×110 Kabolt X, 44mm offset Travel:Â 150mm Spring Type:Â Air |
| Shock |
Fox Float Performance, 185/52.5, custom tuned for Giant Travel:Â 140mm |
| Bottom Bracket |
Shimano Press Fit |
| Stem |
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| Handlebar |
Giant Contact TR35, alloy, 780x35mm, 20mm rise |
| Saddle |
Giant Romero SL |
| Seatpost |
Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm Type:Â Dropper |
| Pedals |
N/A |
| Grips |
Giant Tactal Pro Single Lock-On, 132x35mm |
Groupset
| Rear Derailleur |
Shimano SLX M-7100, Shadow + |
|---|---|
| Front Derailleur |
N/A |
| Crank |
Shimano MT512-1, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
| Shifters |
Shimano SLX M-7100, I-Spec EV, 1×12 |
| Cassette |
Shimano SLX M7100, 10×51 |
| Chain |
KMC X-12 |
| Brakes |
Shimano BR-MT520, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm Type:Â Hydraulic Disc |
| Brake Levers |
Shimano Deore BL-MT501 |
Wheels
| Rims |
Giant TRA, 29″ hookless aluxx wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 SP spokes, DBL technology, MS driver body |
|---|---|
| Spokes |
Sapim, 28, straight pull, DBL Technology |
| Front Hub |
[F] Giant Alloy, 6 Bolt [R] TRA HE, Alloy, 72 Pawl Driver, 6 bolt |
| Rear Hub |
[F] Giant Alloy, 6 Bolt [R] TRA HE, Alloy, 72 Pawl Driver, 6 bolt |
| Tires |
[F] Maxxis Minion DHF, 29×2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29×2.4 WT, 60 tpi, EXO TR, tubeless |
