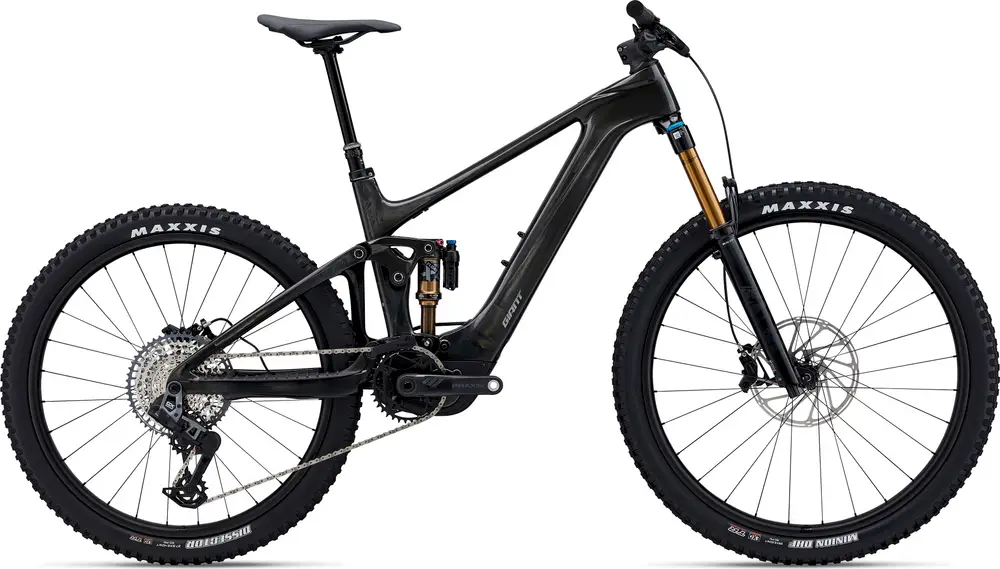

Giant Trance X Advanced E+ Elite 1 2024 Overview
Build
| Frame |
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system Hanger Standard:Â UDH Color:Â Raw Carbon |
|---|---|
| Fork |
Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110 Travel:Â 150mm Spring Type:Â Air |
| Shock |
Fox Float X Factory, EVOL, 185×52.5mm Trunnion mount, custom tuned, recommended sag: 30% Travel:Â 140mm |
| Bottom Bracket |
n/a |
| Stem |
Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System |
| Handlebar |
Giant Contact SLR Trail, carbon, 800mm |
| Saddle |
Giant Romero |
| Seatpost |
Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) Type:Â Dropper |
| Pedals |
n/a |
| Grips |
Giant Tactal Pro-E, tapered design, 135mm 28~30mm (S/M) 142mm 29~32mm (L/XL) |
Groupset
| Rear Derailleur |
SRAM GX Eagle Transmission, AXS |
|---|---|
| Front Derailleur |
MRP HD2 co-moulded chain guide |
| Crank |
SRAM Eagle Transmission chain ring 36T 104BCDPraxis Carbon e-crank arms (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T |
| Shifters |
SRAM AXS Rocker Paddle, wireless electronic shifting |
| Cassette |
SRAM GX Eagle Transmission, 10-52T, 12-speed |
| Chain |
SRAM GX Eagle Transmission Flattop Chain, Powerlock |
| Brakes |
SRAM Code R, 4-piston hydraulic disc, 220mm[F], 200mm[R] Type:Â Hydraulic Disc |
| Brake Levers |
SRAM Code R |
Wheels
| Rims |
Giant TRX Carbon, 30mm inner width, Wide Side Wall Design for improved strength and flat protection |
|---|---|
| Spokes |
Sapim E-Lite [R] Race [F], e-bike optimized |
| Front Hub |
Giant TRX, E-Drive 260Nm 6-Pawl Driver, 72T engagement, MicroSpline body, 110 x 15 [F], 148 x 12 [R] Thru-axle, e-bike optimized |
| Rear Hub |
Giant TRX, E-Drive 260Nm 6-Pawl Driver, 72T engagement, MicroSpline body, 110 x 15 [F], 148 x 12 [R] Thru-axle, e-bike optimized |
| Tires |
Maxxis Minion DHF 29X2.50″ Foldable, TLR, EXO [F]Maxxis Dissector 27.5×2.4″ Foldable, TLR, EXO [R] |
Electric Components
| Motor |
Giant SyncDrive Pro2 Mg, 85Nm, PedalPlus 6-Sensor technology |
|---|---|
| Battery |
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible Recycling Program:Â Â Call2Recycle |
| Remote |
Giant RideControl Ergo3, grip integrated remote |
| Display |
Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display |
| Charger |
Giant EnergyPak 4A smart charger, 60% in 1:45 |
