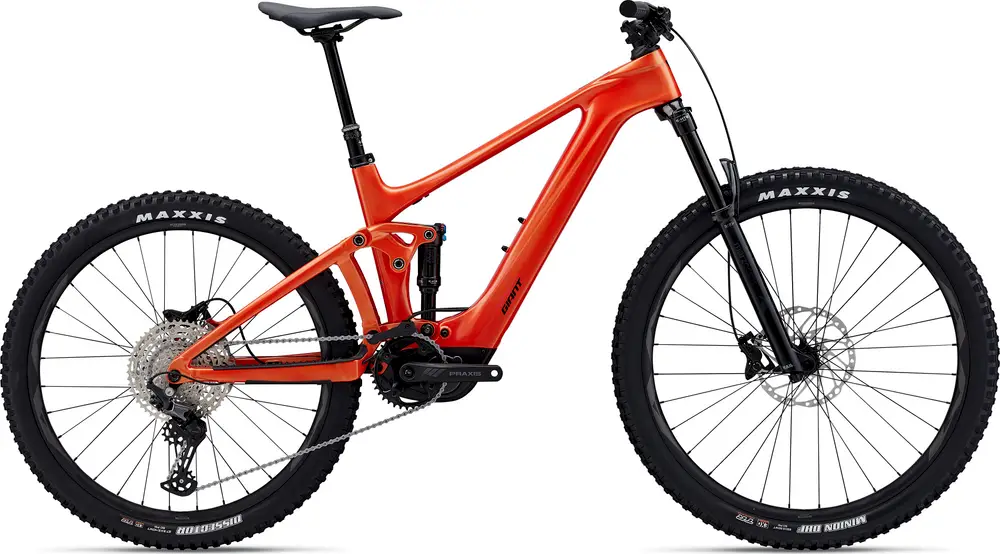

Giant Trance X Advanced E+ Elite 3 2024 Overview
Build
| Frame |
Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system Hanger Standard:Â UDH Color:Â Helios Orange |
|---|---|
| Fork |
Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110 Travel:Â 150mm Spring Type:Â Air |
| Shock |
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185×52.5mm Trunnion mount, custom tuned, recommended sag: 30% Travel:Â 140mm |
| Bottom Bracket |
n/a |
| Stem |
Giant Contact SL 35 |
| Handlebar |
Giant Contact SL 35 Trail, 35x780mm |
| Saddle |
Giant Romero |
| Seatpost |
Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) Type:Â Dropper |
| Pedals |
n/a |
| Grips |
Giant Tactal Pro-E, tapered design, 135mm 28~30mm (S/M) 142mm 29~32mm (L/XL) |
Groupset
| Rear Derailleur |
Shimano Deore 12-speed, Shadow+ |
|---|---|
| Front Derailleur |
MRP HD2 co-moulded chain guide |
| Crank |
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170) |
| Shifters |
Shimano Deore |
| Cassette |
Shimano CS-M6100-12, 10-51T, 12-speed |
| Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
| Brakes |
Shimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R] Type:Â Hydraulic Disc |
| Brake Levers |
Shimano Deore, I-spec EV |
Wheels
| Rims |
Giant AM30, Tubeless ready, 30mm inner width, 29″ [F] / 27.5″ [R] |
|---|---|
| Spokes |
Sapim E-Lite [R] Race [F], e-bike optimized |
| Front Hub |
Shimano MT410 Boost, Center-Lock, 110×15 [F] 148×12 Shimano Micro-Spline Drive Body Thru-axle [R] |
| Rear Hub |
Shimano MT410 Boost, Center-Lock, 110×15 [F] 148×12 Shimano Micro-Spline Drive Body Thru-axle [R] |
| Tires |
Maxxis Minion DHF 29X2.50″ Foldable, TLR, EXO [F]Maxxis Dissector 27.5×2.4″ Foldable, TLR, EXO [R] |
Electric Components
| Motor |
Giant SyncDrive Pro2 Mg, 85Nm, PedalPlus 6-Sensor technology |
|---|---|
| Battery |
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible Recycling Program:Â Â Call2Recycle |
| Remote |
Giant RideControl Ergo3, grip integrated remote |
| Display |
Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display |
| Charger |
Giant EnergyPak 4A smart charger, 60% in 1:45 |
