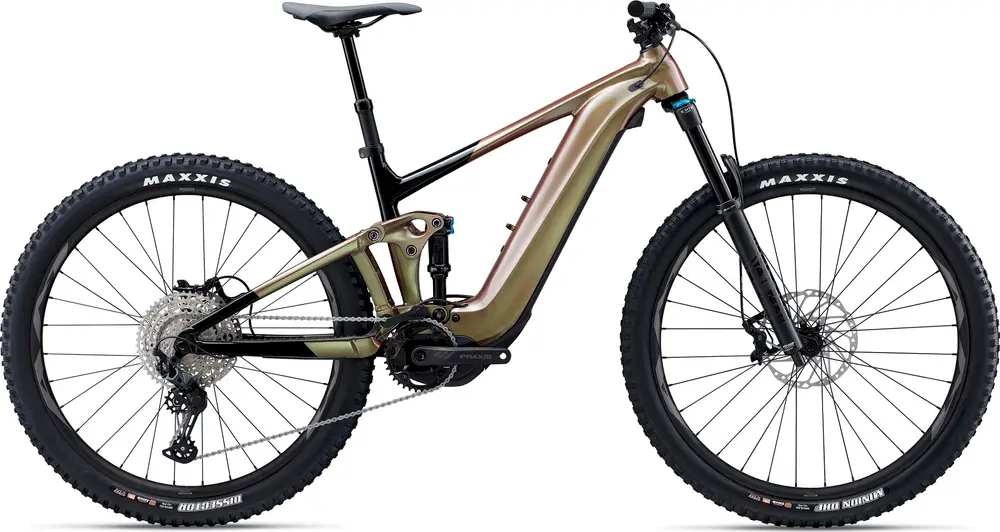

2023 Giant Trance X E+ 2 A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Build
| Frame |
ALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, ‘Boost’ 148×12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible Color:Â Messier |
|---|---|
| Fork |
Fox 36 Float Rhythm, 150mm travel, 44mm offset, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-optimized |
| Rear Shock |
Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185×52.5mm Trunnion mount, custom tuned |
| Bottom Bracket |
n/a |
| Stem |
Giant Contact SL 35 |
| Handlebar |
Giant Contact 35 Trail, 35x780mm |
| Saddle |
Giant Romero E |
| Seatpost |
Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170) |
| Pedals |
Flat pedal |
| Grips |
Giant New trail grip Half-waffle/single lock-on |
Groupset
| Rear Derailleur |
Shimano SLX, 12-speed, Shadow+ |
|---|---|
| Front Derailleur |
MRP HD2 co-moulded chain guide |
| Crank |
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170) |
| Shifters |
Shimano SLX |
| Cassette |
Shimano CS-M6100-12, 10-51T, 12-speed |
| Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
| Brakes |
Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mm |
| Brake Levers |
Shimano Deore |
Wheels
| Rims |
Giant AM 29″, Tubeless ready, 30mm inner width |
|---|---|
| Spokes |
Sapim E-Lite [R] Race [F], e-bike optimized |
| Front Hub |
Shimano MT410 Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Rear Hub |
Shimano MT410 Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Tires |
Maxxis Minion DHF 29×2.6″ foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29×2.6″ Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
Electric Components
| Motor |
SyncDrive Pro, 85Nm, powered by Yamaha |
|---|---|
| Battery |
EnergyPak Smart 800, EnergyPak Plus 250Wh range extender compatible |
| Remote |
ANT+ Wireless display compatible |
