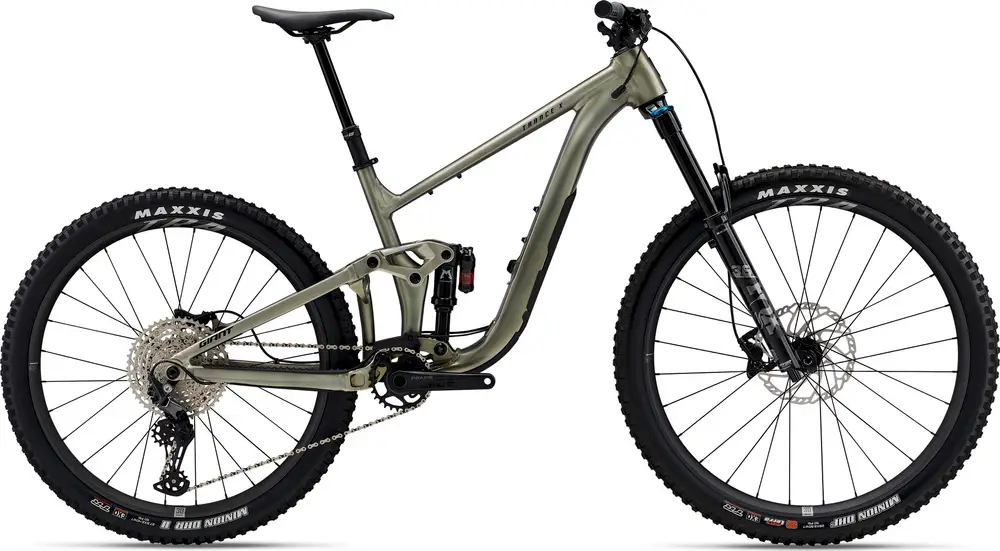

Giant Trance X SX 2024 Overview
Build
| Frame |
ALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip – Maestro 3, flip chip – headset, integrated down tube storage and under-top tube storage mounts Tire Clearance:Â 2.5″ Color:Â Golden Haze |
|---|---|
| Fork |
Fox 36 Float Rhythm, 160mm, GRIP damper, 15×110 Kabolt X, 44mm offset Travel:Â 160mm Spring Type:Â Air |
| Shock |
Marzocchi Bomber Air, two-position compression sweep, 185/55, custom tuned for Giant Travel:Â 145mm |
| Bottom Bracket |
Praxis, press fit |
| Stem |
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| Handlebar |
Giant Contact TR35, alloy, 780x35mm, 20mm rise |
| Saddle |
Giant Romero SL |
| Seatpost |
Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm Type:Â Dropper |
| Pedals |
N/A |
| Grips |
Giant Tactal Pro Single Lock-On, 132x35mm |
Groupset
| Rear Derailleur |
Shimano Deore, Shadow + |
|---|---|
| Front Derailleur |
N/A |
| Crank |
Praxis Cadet HD M24, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
| Shifters |
Shimano Deore, 1×12 |
| Cassette |
Shimano Deore M6100, 10×51 |
| Chain |
KMC X-12 |
| Brakes |
Shimano BR-MT420, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm Type:Â Hydraulic Disc |
| Brake Levers |
Shimano Deore BL-MT401 |
Wheels
| Rims |
Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology |
|---|---|
| Spokes |
Sapim, 28, J-bend |
| Front Hub |
[F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body |
| Rear Hub |
[F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body |
| Tires |
[F] Maxxis Minion DHF, 29×2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 27.5×2.4 WT, 60 tpi, EXO TR, tubeless |
