Build
| Frame |

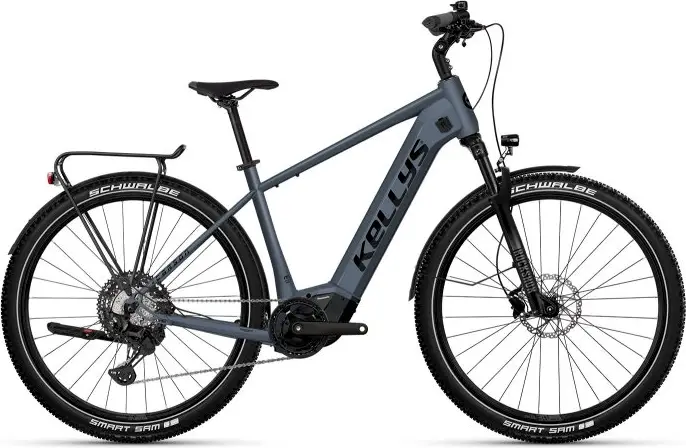

KELLYS E-CARSON R-series – advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5 tapered HT |
|---|---|
| Fork |
ROCK SHOX Recon GOLD RL (29″) Boost, 100 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle Travel:Â 100mm Spring Type:Â Air |
| Stem |
PROMAX a-head adjustable – diam 28.6 mm / bar bore 31.8 mm / length 105 mm |
| Handlebar |
KLS Active RiseBar – diam 31.8 mm / rise 18 mm / width 700 mm |
| Saddle |
SELLE ROYAL Vivo |
| Seatpost |
KLS Active – diam 30.9 mm / length 350 mm Type:Â Rigid |
| Pedals |
plastic |
| Grips |
KLS Wave 2Density ergonomic |
Groupset
| Rear Derailleur |
SHIMANO Deore XT Linkglide M8130 (direct mount) |
|---|---|
| Crank |
MIRANDA Delta (36T) – length 170 mm |
| Shifters |
SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV) |
| Cassette |
SHIMANO Linkglide SC-LG600-11 (11-50T) |
| Chain |
SHIMANO Linkglide CN-LG500 (122 links) |
| Brakes |
SHIMANO MT410 hydraulic disc Type:Â Hydraulic Disc |
| Brake Levers |
SHIMANO BL-MT4100 |
Wheels
| Rims |
KLS Valor 3 Disc 622×30 (32 holes) |
|---|---|
| Spokes |
stainless steel black |
| Front Hub |
SHIMANO MT400-B / Alivio M4050 Disc Center Lock (32 holes) |
| Rear Hub |
SHIMANO MT400-B / Alivio M4050 Disc Center Lock (32 holes) |
| Tires |
SCHWALBE Smart Sam Performance 57-622 (29″x2.25) ADDIX, ReflectiveLine |
| Disc Rotors |
180 mm front / 180 mm rear |
Electric Components
| Motor |
PANASONIC GX Ultimate, 95 Nm, 36 V |
|---|---|
| Battery |
KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ |
| Display |
PANASONIC Bluetooth 5.0 navigation Side Color Display |
Accessories
| Lights |
Front: TRELOCK Veo 50, Rear: TRELOCK Duo Flat |
|---|---|
| Fenders |
aluminium |
